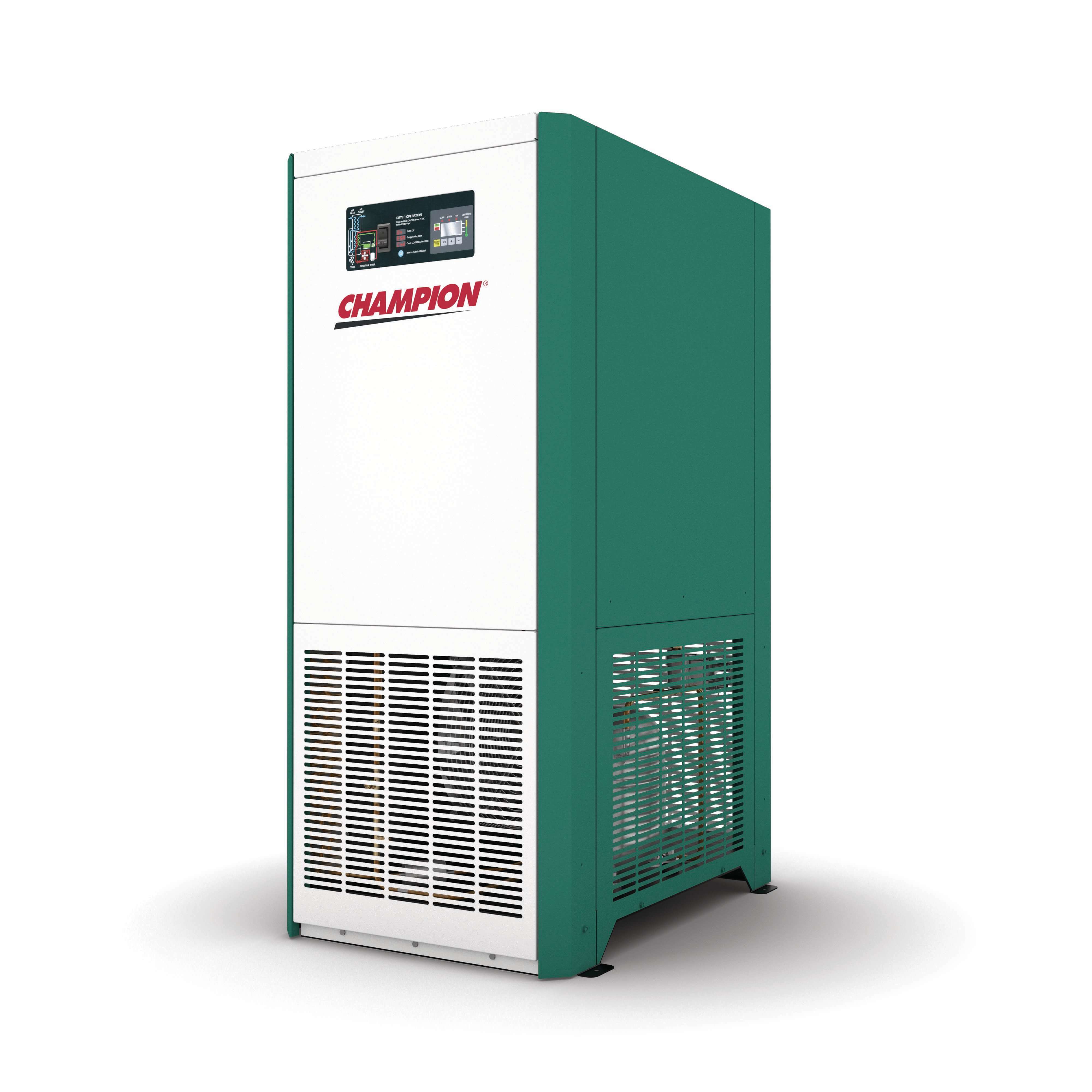

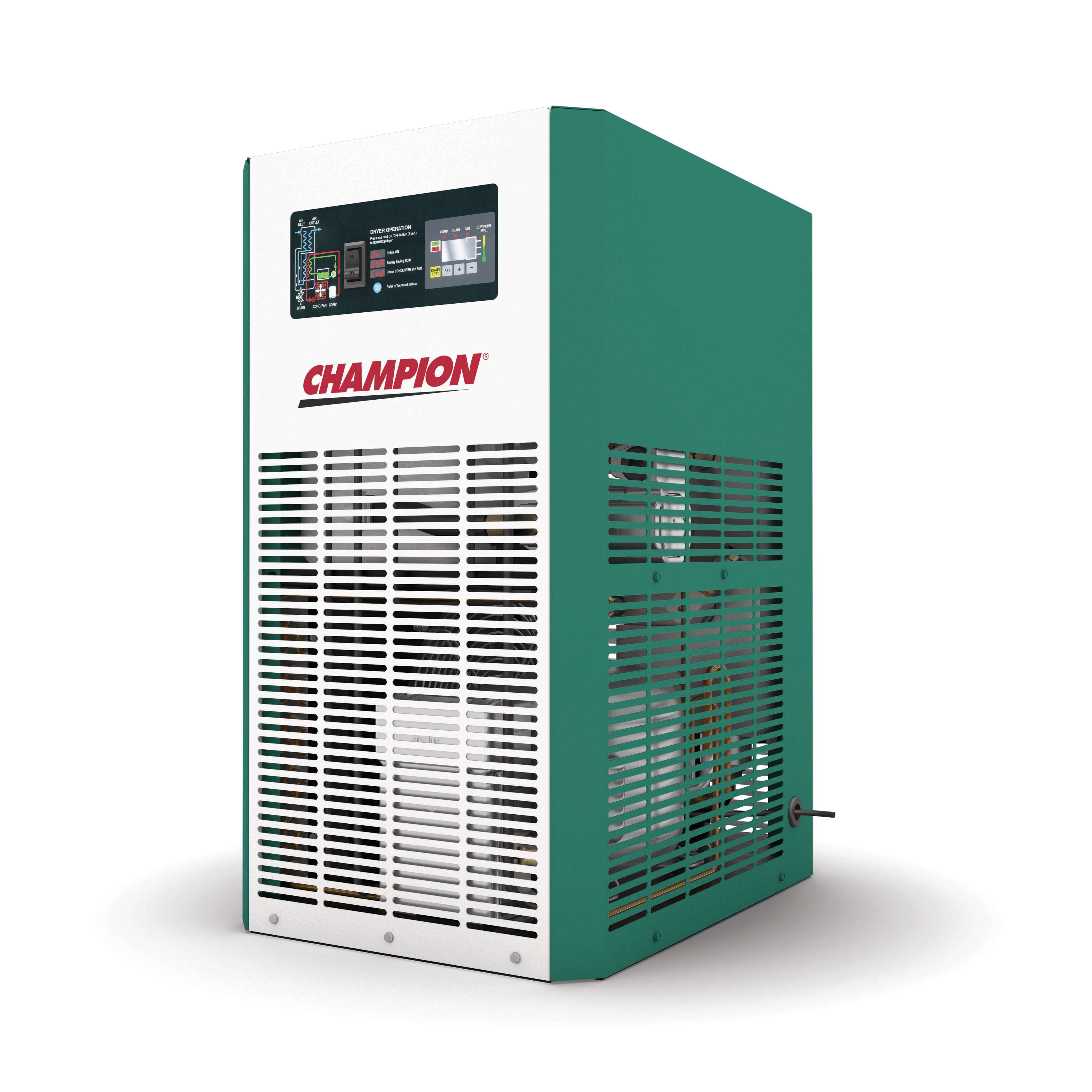

XCCYA Series

Cycling Refrigerated Dryer

The Champion XCCYA Series is a genuine cycling dryer, incorporating innovative features that make it not only the most reliable, but the most energy efficient dryer in its class. An advanced cycling dryer, the XCCYA Series provides significant savings because it does not waste energy costs through continuous operation of its refrigeration system, as do traditional non-cycling dryers. Each component has been designed to provide durability plus maximum energy efficiency.

In addition, this cycling dryer utilizes R513A refrigerant, achieving an 85% reduction in Global Warming Potential (GWP) for increased sustainability. The net effect is a GWP of less than 700. While the larger ranges utilize R454B, offering a more sustainable way to keep air quality steady and production running strong.

Design Features

10-1200 SCFM
Integrated Pre‑ and Post‑Filters
Low‑GWP Refrigerants: R513A for 300–800 SCFM, R454B for 1000–1200 SCFM
Improved Energy Efficiency: The updated design improves efficiency by at least 10% over legacy dryers, helping users reduce operating
Reduced Power Consumption: Larger mid‑range models (500–800 SCFM) can achieve significantly lower power usage, directly reducing long‑term energy
Lower Pressure Drop: Enhanced internal flow design minimizes pressure loss, improving overall system performance and reducing strain on the air compressor
39°F Pressure Dew Point Performance: Maintains a steady 39°F PDP, ensuring consistent moisture removal to protect downstream processes and equipment
UL 60335‑1 & UL 60335‑2‑40, CSA 22.2 Certified

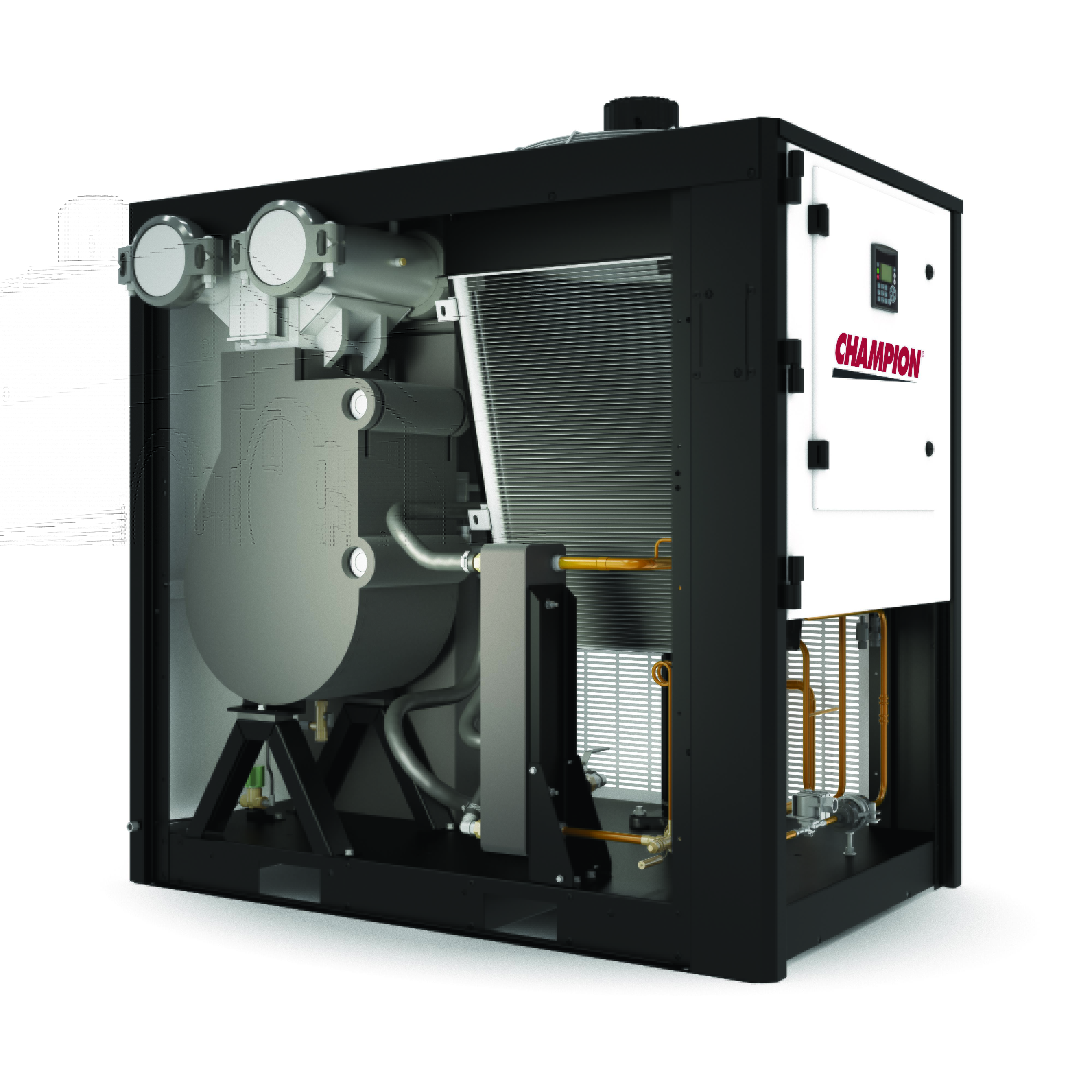

The superior performance of the XCCYA Series dryer can be attributed to the effective heat transfer capabilities of the exchanger design utilized throughout the compressed air circuit. The dryer design includes a pre-cooling system with heat exchangers to properly condition the air for drying. A re-heater section of the dryer's air side also uses these high-performance heat exchangers to prepare the dried compressed air for re-entry into the air system. This prevents pipe sweating and readies the compressed air for use in process applications.

Best in class energy consumption: Patented heat exchanger, precooler/reheater, low pressure loss and R-513a/R-454b refrigerant lower your energy costs

Efficient operation: Storing cold energy as thermal mass reduces the dryer compressor’s running time along with an electronic, no-loss drain that prevents compressed air loss

100% Corrosion-Resistant Construction permits optimal heat transfer, in the most demanding applications

XCCYA Series Dryer's Air Circuit Heat Exchangers combine a high heat transfer coefficient with unmatched low pressure drop via standard precooler/reheater resulting in consistent ISO Class 4 Dew Point

			Pressure		IN/OUT AIR	Power		OVERALL DIMENSIONS						SHIP	Ship
	Inlet Flow		Drop		CONNECT	Consumption	Refrigerant	W	D	H	W	D	H	Weight	Weight
MODEL*	SCFM*	NM³/H	PSI	VOLTAGES	SIZE	KW		IN.	IN.	IN.	MM	MM	MM	LBS.	KG

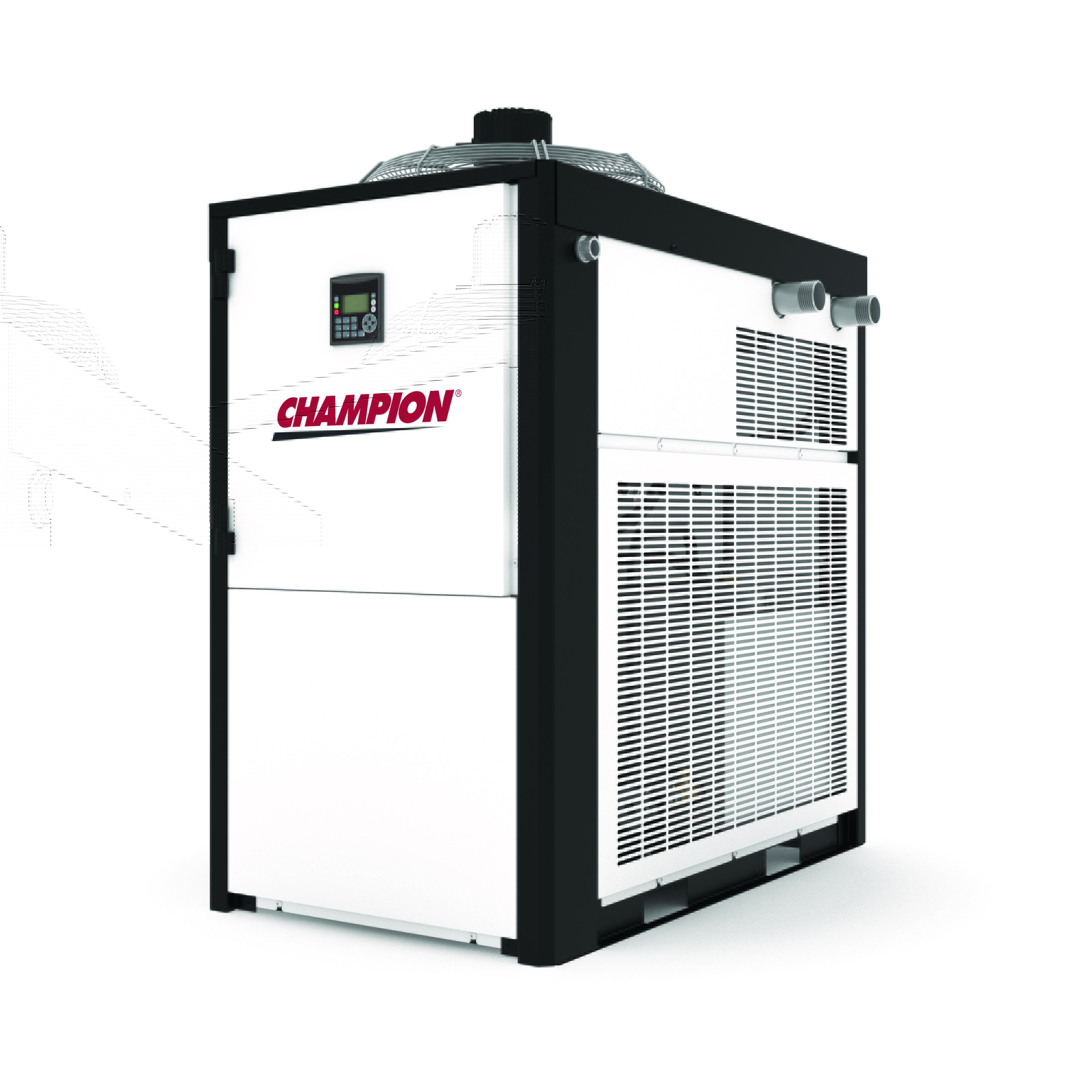

XCCYA300A	300	510	1.9	460/3/60	2" MNPT	2.4	R-513A	34.0	49.2	55.6	863.6	1249.7	1412.3	875	397
XCCYA300W	300	510	1.9	460/3/60	2" MNPT	1.5	R-513A	34.0	49.2	48.1	863.6	1249.7	1221.8	815	370
XCCYA400A	400	680	2.7	460/3/60	2" MNPT	3	R-513A	34.0	49.2	55.6	863.6	1249.7	1412.3	895	406
XCCYA400W	400	680	2.7	460/3/60	2" MNPT	1.9	R-513A	34.0	49.2	48.1	863.6	1249.7	1221.8	840	381
XCCYA500A	500	850	1	460/3/60	3" MNPT	2.7	R-513A	41.4	57.5	59.8	1051.6	1460.5	1519.0	1341	608
XCCYA500W	500	850	1	460/3/60	3" MNPT	2.2	R-513A	41.4	57.5	53.4	1051.6	1460.5	1356.4	1299	589
XCCYA600A	600	1020	1.1	460/3/60	3" MNPT	2.9	R-513A	41.4	57.5	59.8	1051.6	1460.5	1519.0	1366	620
XCCYA600W	600	1020	1.1	460/3/60	3" MNPT	2.6	R-513A	41.4	57.5	53.4	1051.6	1460.5	1356.4	1325	601
XCCYA700A	700	1190	1.7	460/3/60	3" MNPT	4.4	R-513A	41.4	57.5	59.8	1051.6	1460.5	1519.0	1391	631
XCCYA700W	700	1190	1.7	460/3/60	3" MNPT	1.7	R-513A	41.4	57.5	53.4	1051.6	1460.5	1356.4	1349	612

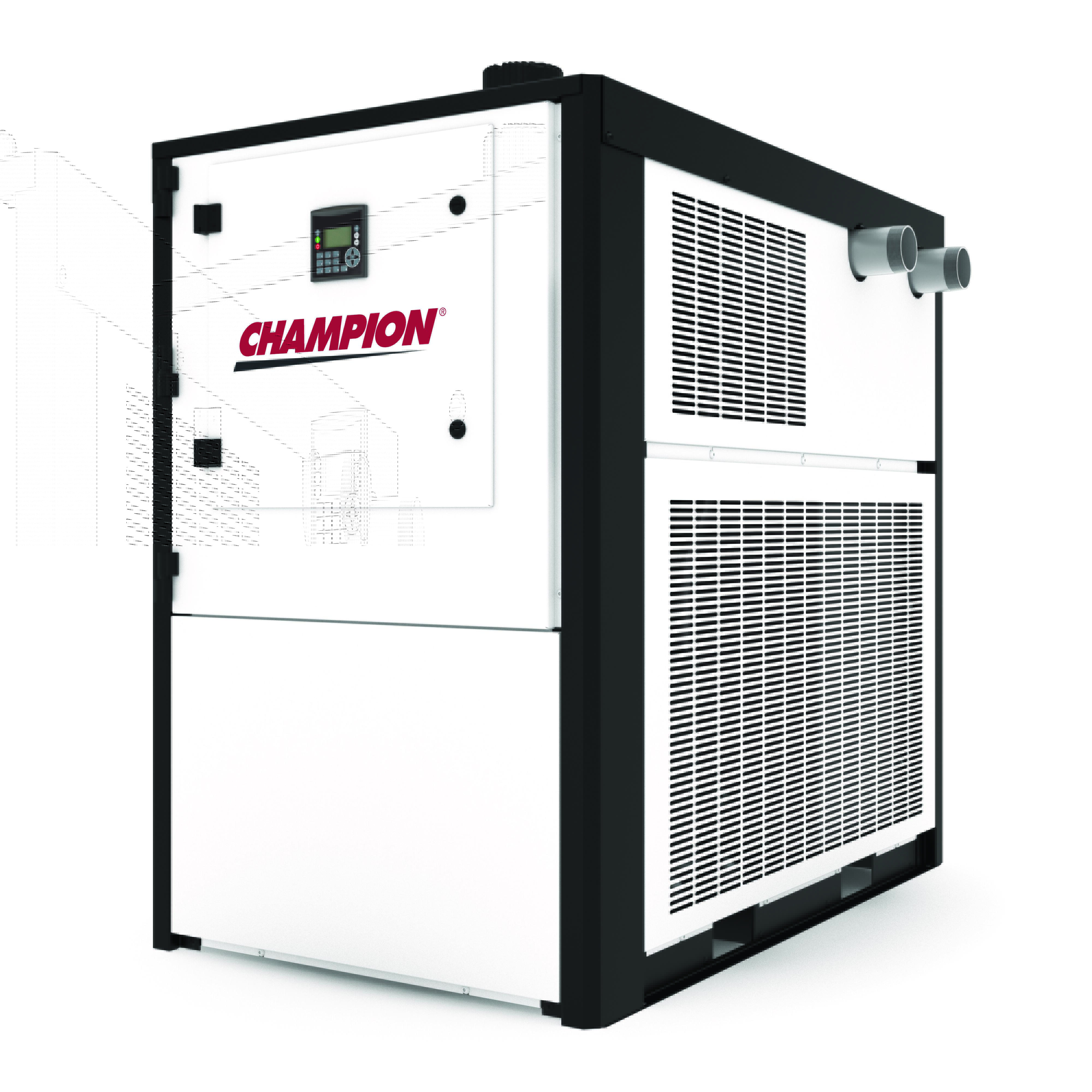

XCCYA800A	800	1360	2.2	460/3/60	3" MNPT	4.8	R-513A	41.4	57.5	59.8	1051.6	1460.5	1519.0	1416	643
XCCYA800W	800	1360	2.2	460/3/60	3" MNPT	2.2	R-513A	41.4	57.5	53.4	1051.6	1460.5	1356.4	1376	625

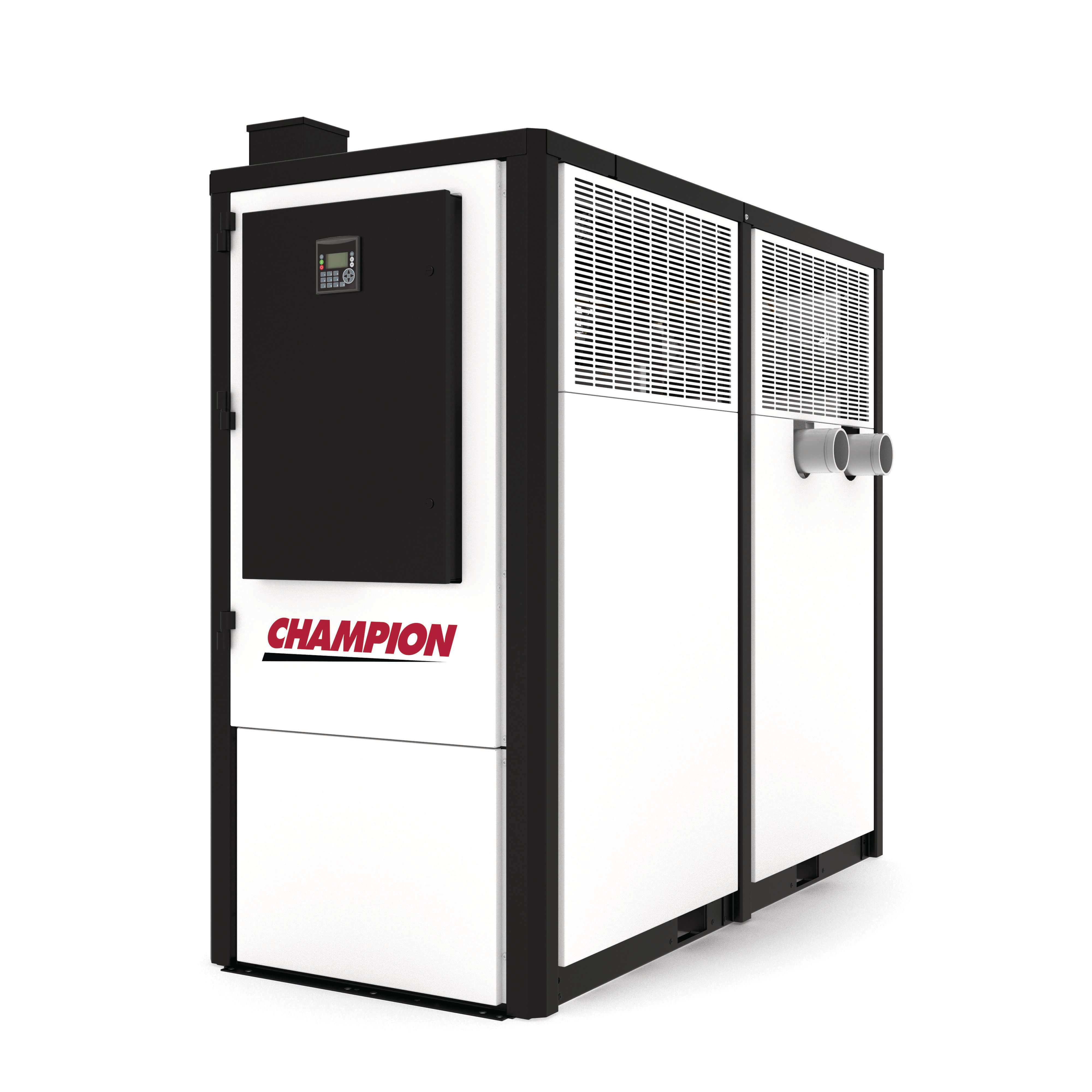

XCCYA1000A	1000	1699	1.8	460/3/60	4" MNPT	11	R454B	40.7	78.9	82.5	1033.8	2004.1	2095.5	1928	875
XCCYA1000W	1000	1699	1.8	460/3/60	4" MNPT	9.8	R454B	40.7	78.9	72.2	1033.8	2004.1	1833.9	1964	891
XCCYA1200A	1200	2039	2.5	460/3/60	4" MNPT	12.3	R454B	40.7	78.9	82.5	1033.8	2004.1	2095.5	1928	875
XCCYA1200W	1200	2039	2.5	460/3/60	4" MNPT	10.8	R454B	40.7	78.9	72.2	1033.8	2004.1	1833.9	1964	891
