- Handles inlet air temperatures up to 200°F for high-temperature applications.
- Durable heat exchangers:
- Aluminum plate-fin for 60–100 SCFM models.
- Brazed plate for 15–35 SCFM models.
- Multi-stage cooling system improves dew point performance (60–100 SCFM models only).
- Smart controller with LED indicators, alarm history, and energy-saving mode (60–100 SCFM models only).
- Rated for maximum inlet temperature up to 200°F for standard models.
- Supports maximum working pressure of up to 200 PSIG.
- Certified to UL 60335-1 and UL 60335-2-40 safety standards.

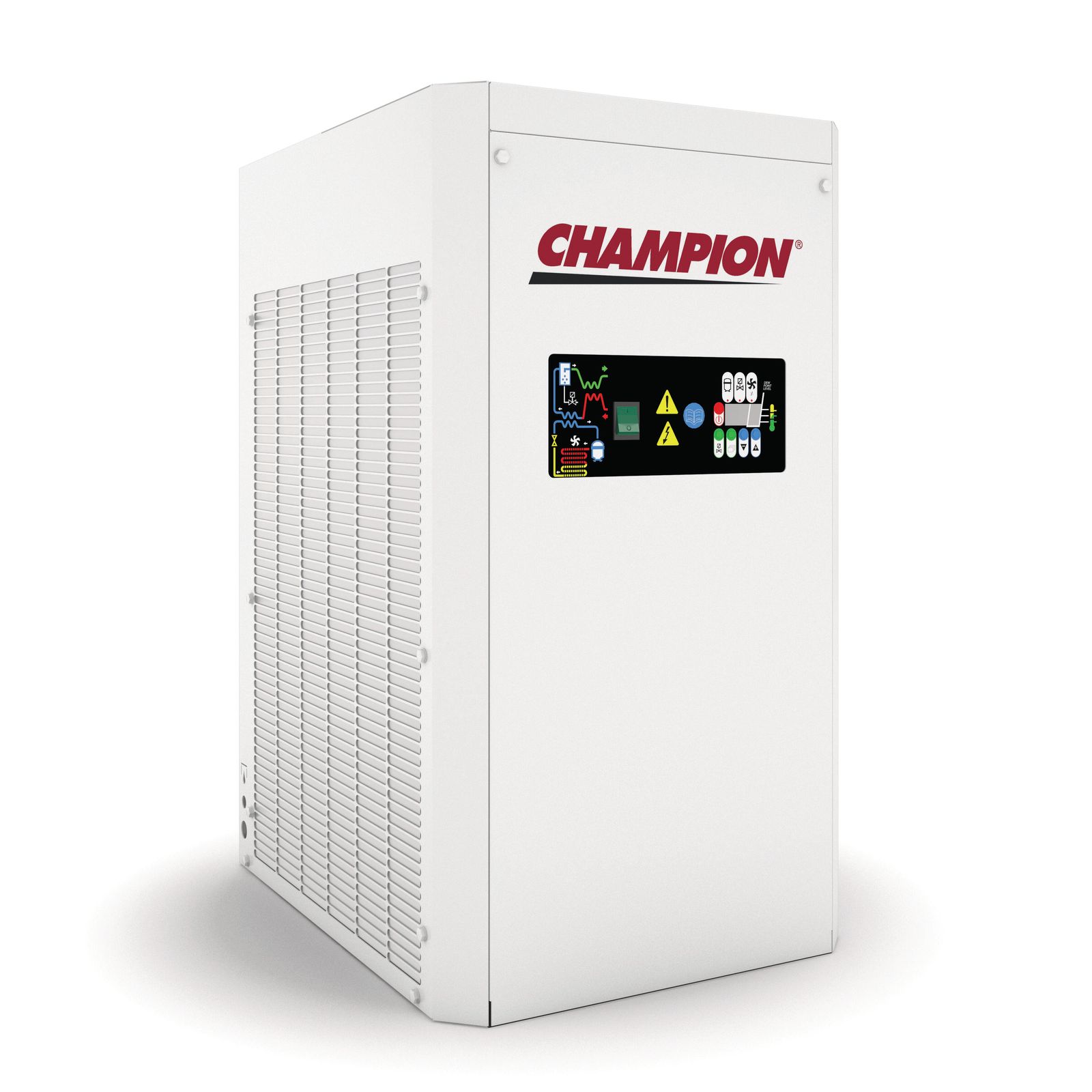

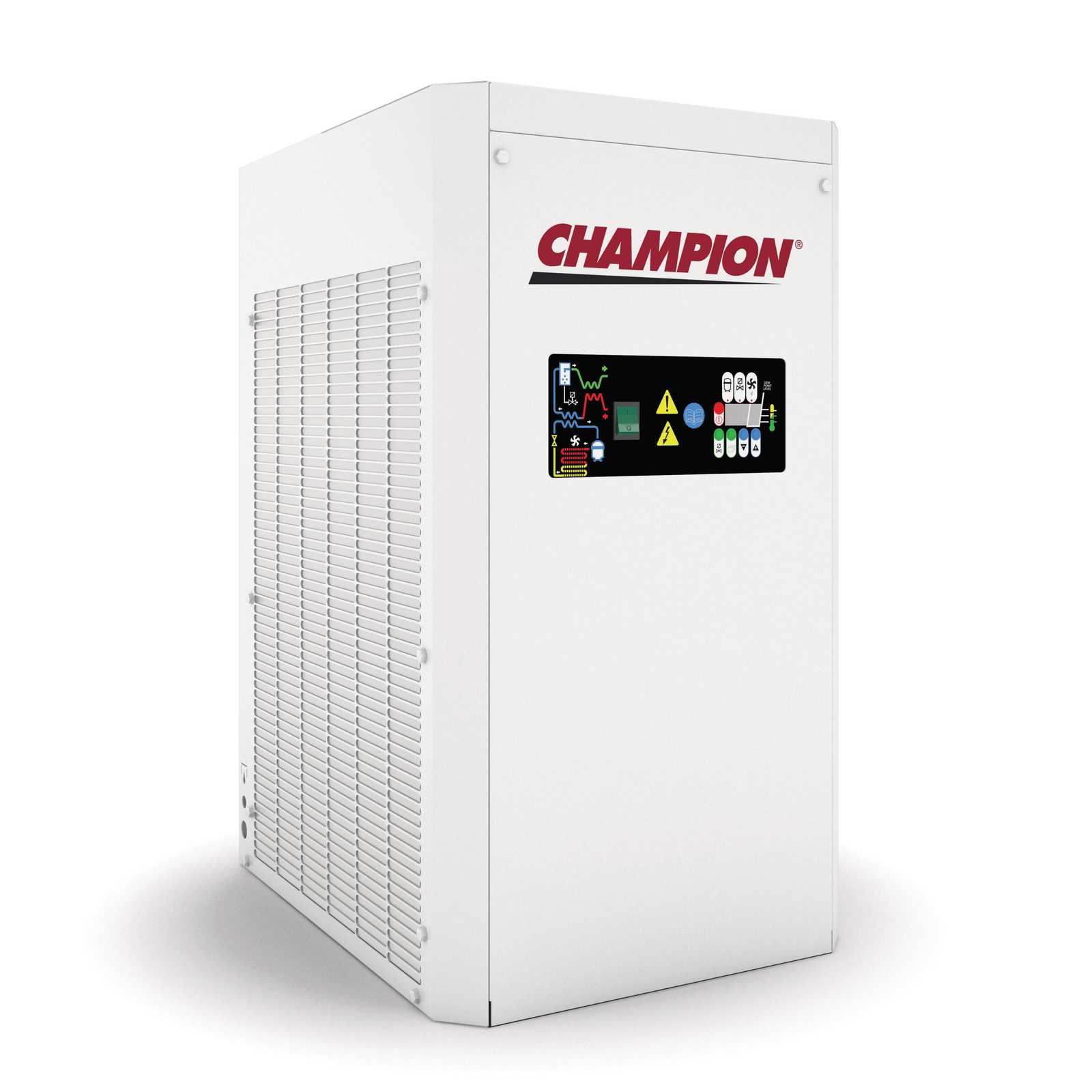

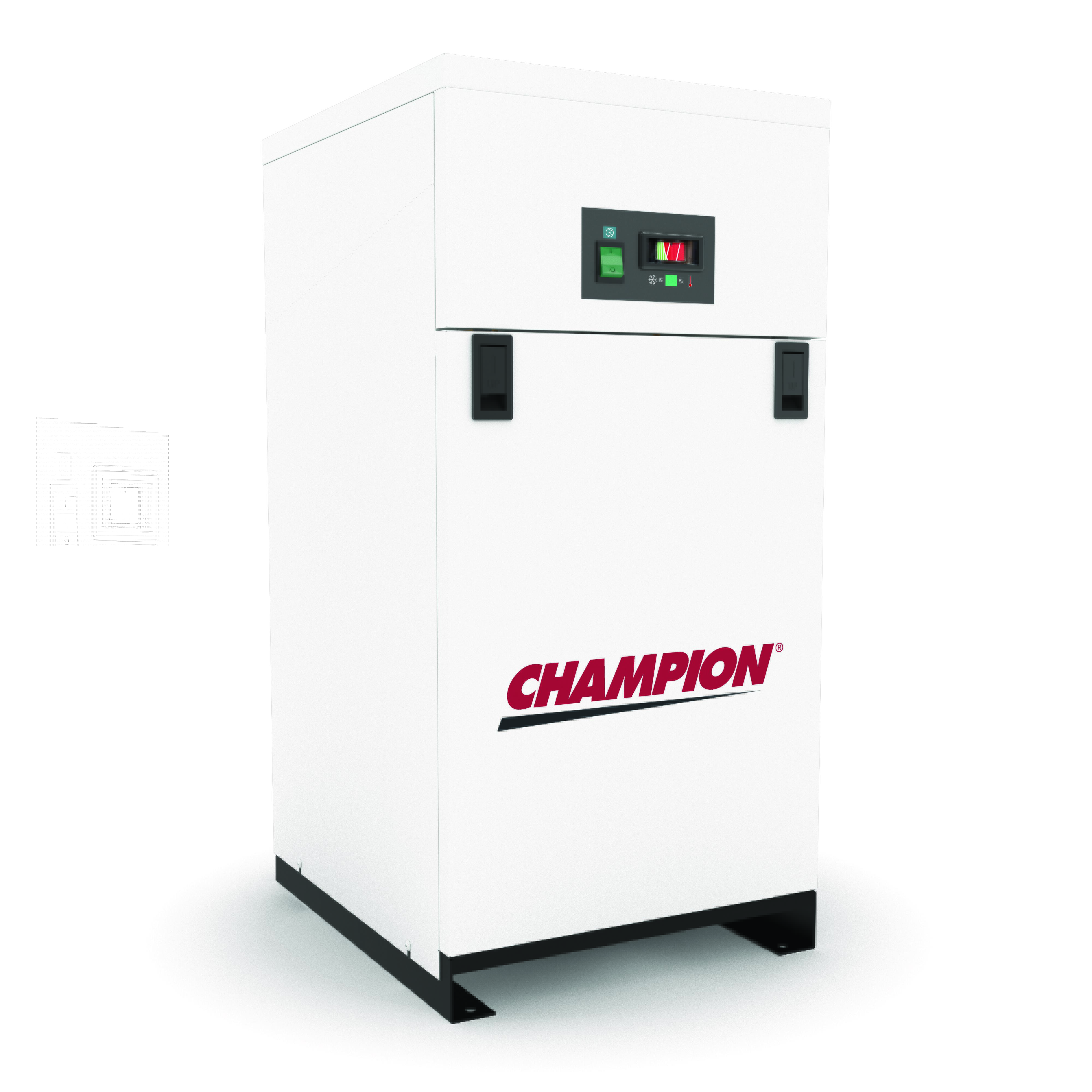

Champion CRH Series High Inlet Temperature refrigerated dryers are designed for reciprocating air compressors, handling inlet air temperatures up to 200°F. They feature low GWP refrigerant (R513A), an integrated moisture separator, durable heat exchangers, brazed plate for 15–35 scfm and aluminum plate fin for 60–100 scfm models. All units are UL/CSA certified.
- R513A refrigerant with low Global Warming Potential (GWP) for environmental responsibility.
- Integrated moisture separator simplifies installation and reduces system cost (60-100SCFM models only).
- Automatic zero-loss drain removes condensate efficiently without compressed air loss.
- Plug-and-play installation with standard 115V/60Hz wall plug for convenience.
Pressure | IN/OUT AIR | Power | OVERALL DIMENSIONS | SHIP | ||||||
Inlet Flow | Drop | CONNECT | Consumption | Refrigerant | W | D | H | Weight | ||
MODEL | SCFM* | PSID | VOLTAGES | SIZE | KW | IN. | IN. | IN. | LBS. | |
CRHA15A1 | 15 | 0.8 | 115/1/60 | 3/4" MNPT | 0.48 | R513A | 14.6 | 16.9 | 29.7 | 110 |
CRHA25A1 | 25 | 1.8 | 115/1/60 | 3/4" MNPT | 0.51 | R513A | 14.6 | 16.9 | 29.7 | 110 |
CRHA35A1 | 35 | 2.5 | 115/1/60 | 3/4" MNPT | 0.64 | R513A | 14.6 | 16.9 | 29.7 | 117 |
CRHA60A1 | 60 | 4.8 | 115/1/60 | 3/4" FNPT | 0.61 | R513A | 16.6 | 22.4 | 30 | 123 |
CRHA80A1 | 80 | 3.8 | 115/1/60 | 3/4" FNPT | 0.77 | R513A | 16.6 | 22.4 | 30 | 128 |
CRHA100A1 | 100 | 6.4 | 115/1/60 | 1" FNPT | 1.16 | R513A | 16.6 | 22.4 | 30 | 132 |
