CGD Series

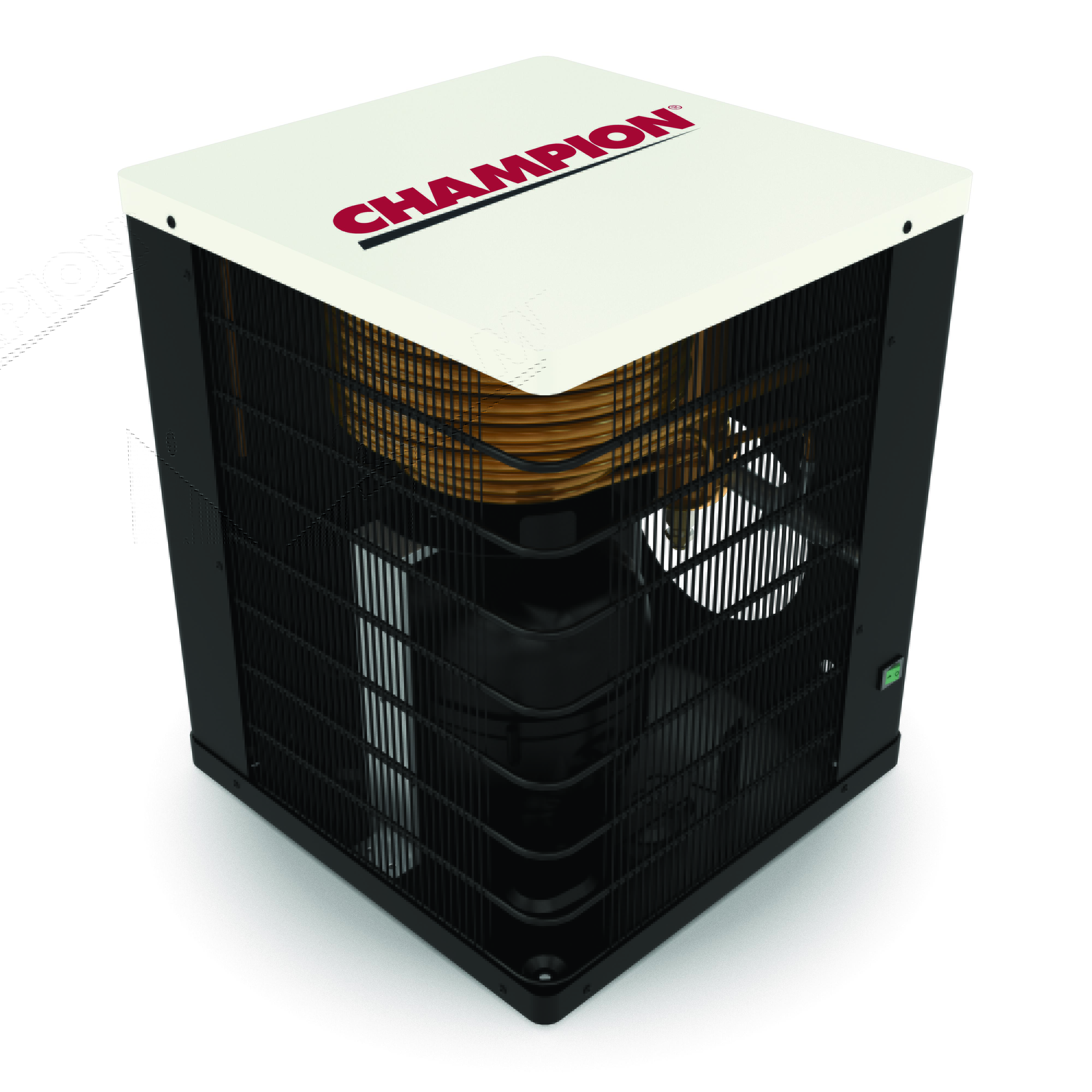

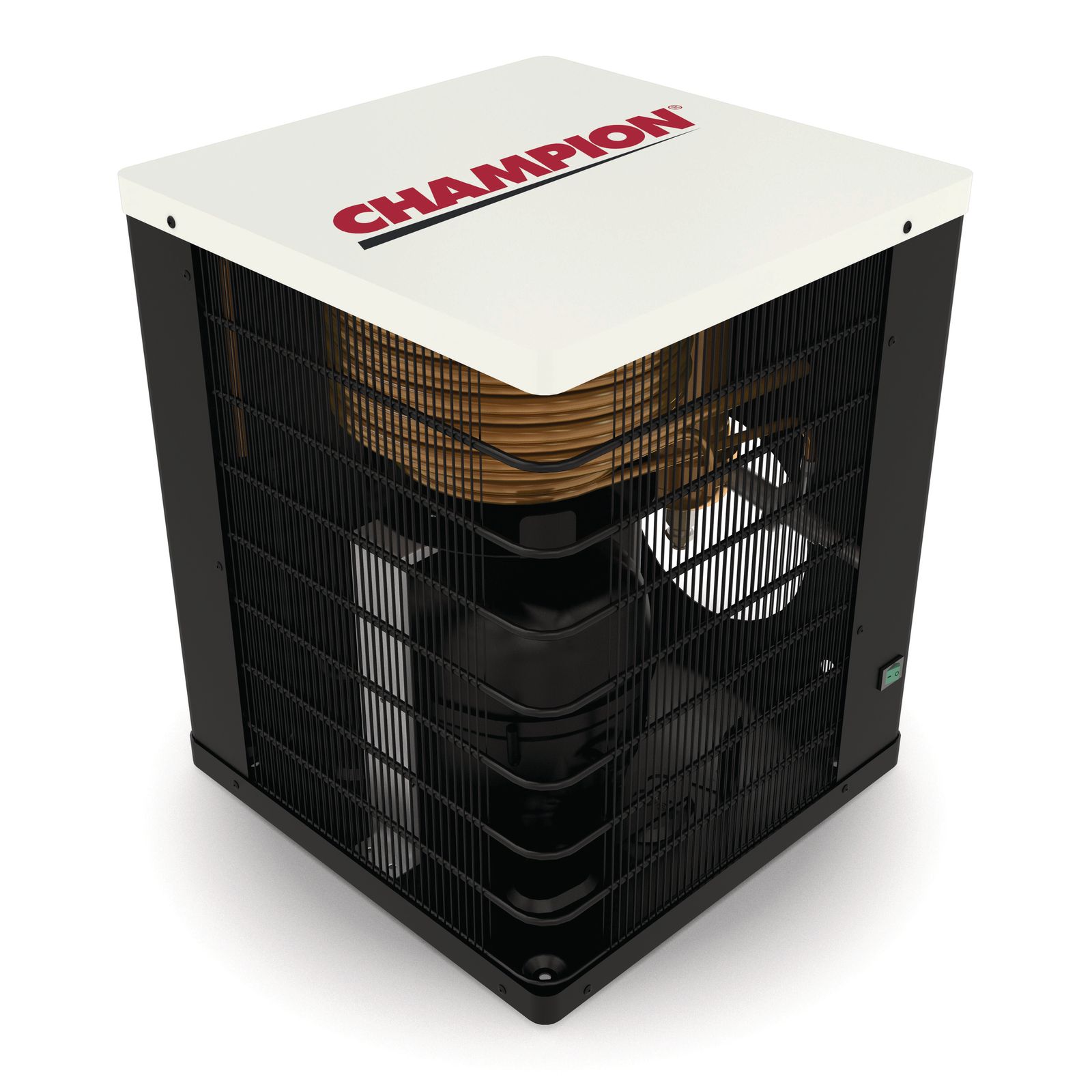

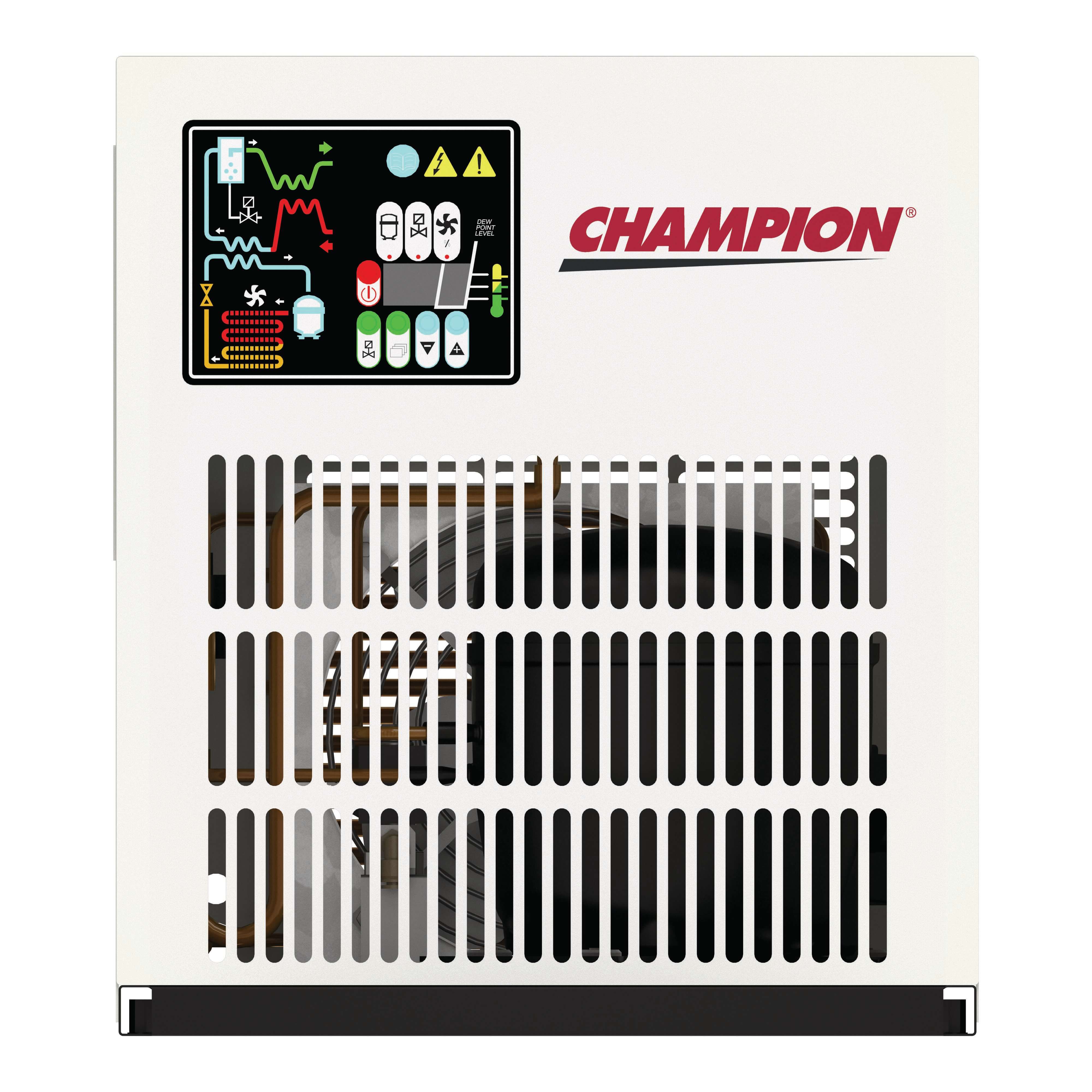

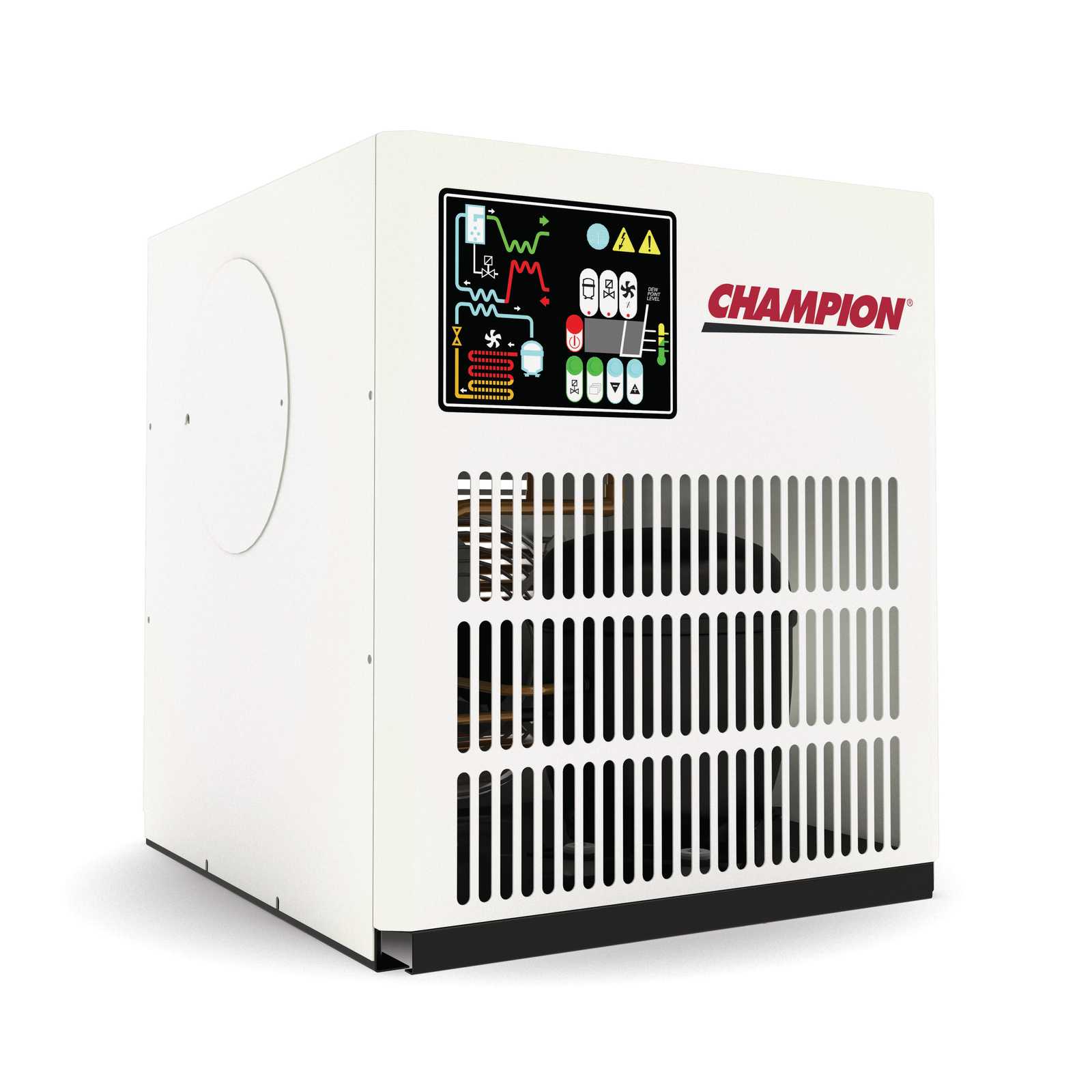

The CGD Series refrigerated air dryers deliver reliable ISO 8573-1 Air Quality, Class 4 to 5 pressure dew point, and uses eco-friendly R513A refrigerant. Featuring durable aluminum heat exchangers and low pressure drop for energy efficiency, the dryers come in models ranging from 7 to 50 scfm. Certified to UL and CSA safety standards, they ensure performance, versatility, and compliance with environmental regulations.

Utilizes R513A refrigerant with low Global Warming Potential (GWP), meeting modern environmental standards.
Constant pressure valve ensures stable operation and consistent performance.
Aluminum heat exchanger with brazed connections enhances durability and efficiency.
Low pressure drop design reduces energy usage and operational costs.
Streamlined construction simplifies upkeep and servicing.
ETL Certified to UL60335-1 & 60335-2-40

Aligns with sustainability goals and regulations by using low GWP refrigerant.
High-quality components and rigorous testing minimize downtime and ensure dependable performance.
Brazed aluminum heat exchangers enhance longevity and efficiency.
Wide capacity range accommodates diverse industrial needs.
Simple design reduces servicing time and effort.

Model	Inlet Flow SCFM*	Pressure Drop PSID	Voltages	IN/OUT Air Connect SIZE	Power Consumption kW	Refrigerant	W (IN.)	D (IN.)	H (IN.)	Ship Weight LBS.
CGDA7A1	7	3.5	115/1/ 60	3/8" MNPT	0.15	R513A	12.6	12.6	15.3	45
CGDA11A1	11	6	115/1/ 60	3/8" MNPT	0.16	R513A	12.6	12.6	15.3	45
CGDA15A1	15	8.5	115/1/ 60	3/8" MNPT	0.16	R513A	12.6	12.6	15.3	45
CGDA25A1	25	0.5	115/1/ 60	1/2" FNPT	0.27	R513A	15.4	16.9	17.5	58
CGDA32A1	32	0.6	115/1/ 60	1/2" FNPT	0.27	R513A	15.4	16.9	17.5	58
CGDA42A1	42	1	115/1/ 60	1/2" FNPT	0.51	R513A	15.4	16.9	17.5	69
CGDA50A1	50	1.3	115/1/ 60	1/2" FNPT	0.52	R513A	15.4	16.9	17.5	69
