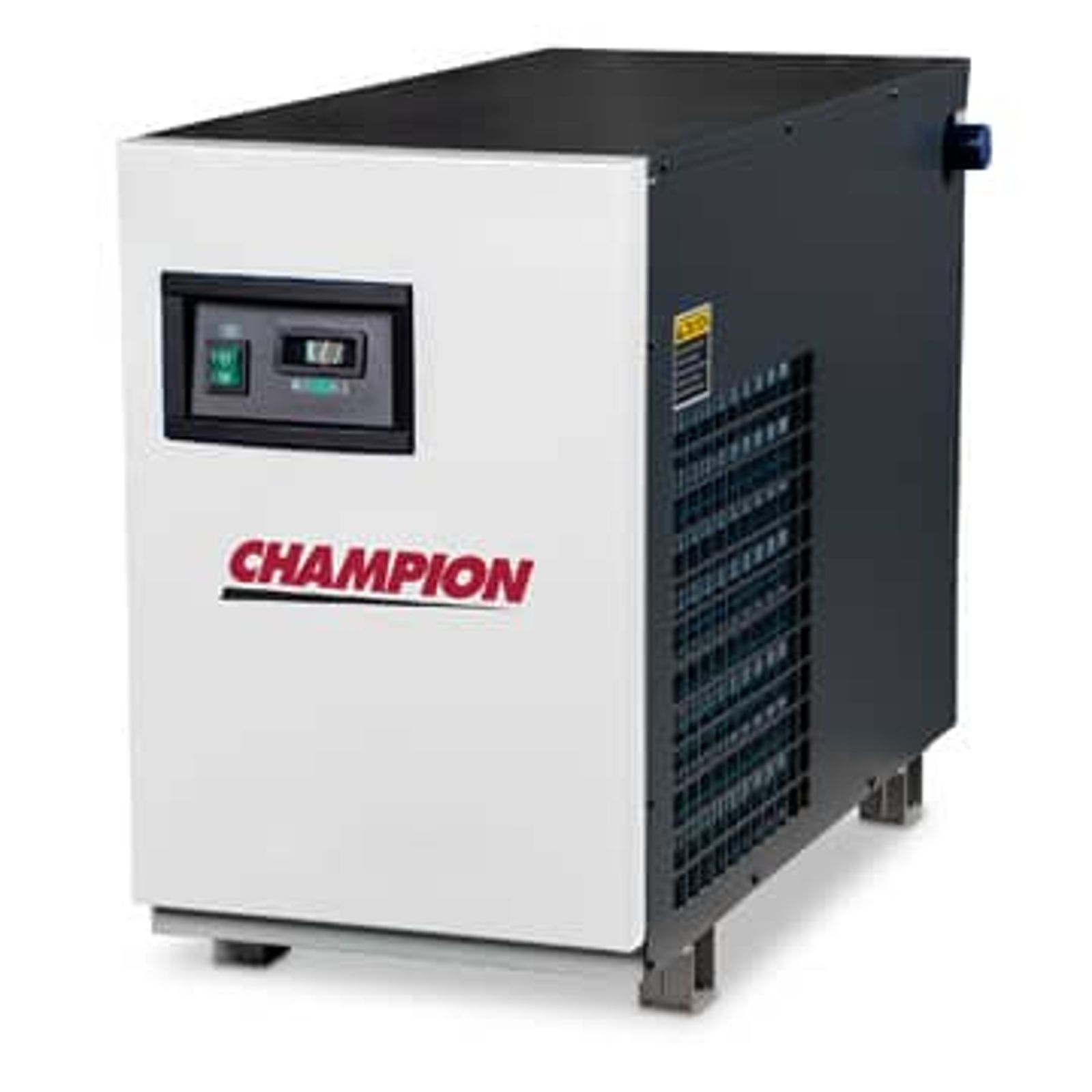

CGD Series Non-Cycling Refrigerated Air Dryer

Non-Cycling Refrigerated Air Dryer

CGD Series Air Dryers 10-1200 SCFM
The CGD Series refrigerated air dryers offer the perfect balance between technology and simplicity to dry compressed air systems to a stable SO 8573-1 Air Quality, Class 4 to 5 pressure dew point. The smooth bore, copper tube-on-tube heat exchangers make for an innovative, efficient system.

Features

CGD 15-50 SCFM
  • 7-1200 SCFM
  • Smooth bore, copper tube-on-tube heat exchangers
  • Centrifugal separator efficiently captures condensate
  • Static condenser design provides trouble free, quiet operation
  • Electronic drain valve
  • CGD 75-1200 SCFM
  • Stainless steel, cross flow heat exchangers optimize heat transfer and service life
  • Compact design saves floor space
  • Stainless steel inlet/outlet connections to prevent corrosion
  • Timed electric condensate drain
  • Integral demister/separator
  • Benefits

    Value At Its Best

    Efficient Condensate Management

    Increased calming zone and integral demister/separator captures liquid condensate and solid particles

    • Effectively removes condensate from 0-100% flow conditions without moisture carry-over

    Furnished with condensate drain

    • Electronic or timed electric (dependent on scfm range)
