RV Series

Two Stage, Splash Lubricated (2-15 HP) Reciprocating Air Compressor

The Champion RV Series compressor is engineered to deliver industrial-rated dependability at an affordable price. The RV line offers maximum installation versatility. Each compressor features durable cast-iron construction, industrial grade filter and silencer and alloy steel reed valves.

Specifications and Features

2-15 HP
125-175 PSIG
4.5-48.1 CFM at 175 PSIG rating
Tank Mounted

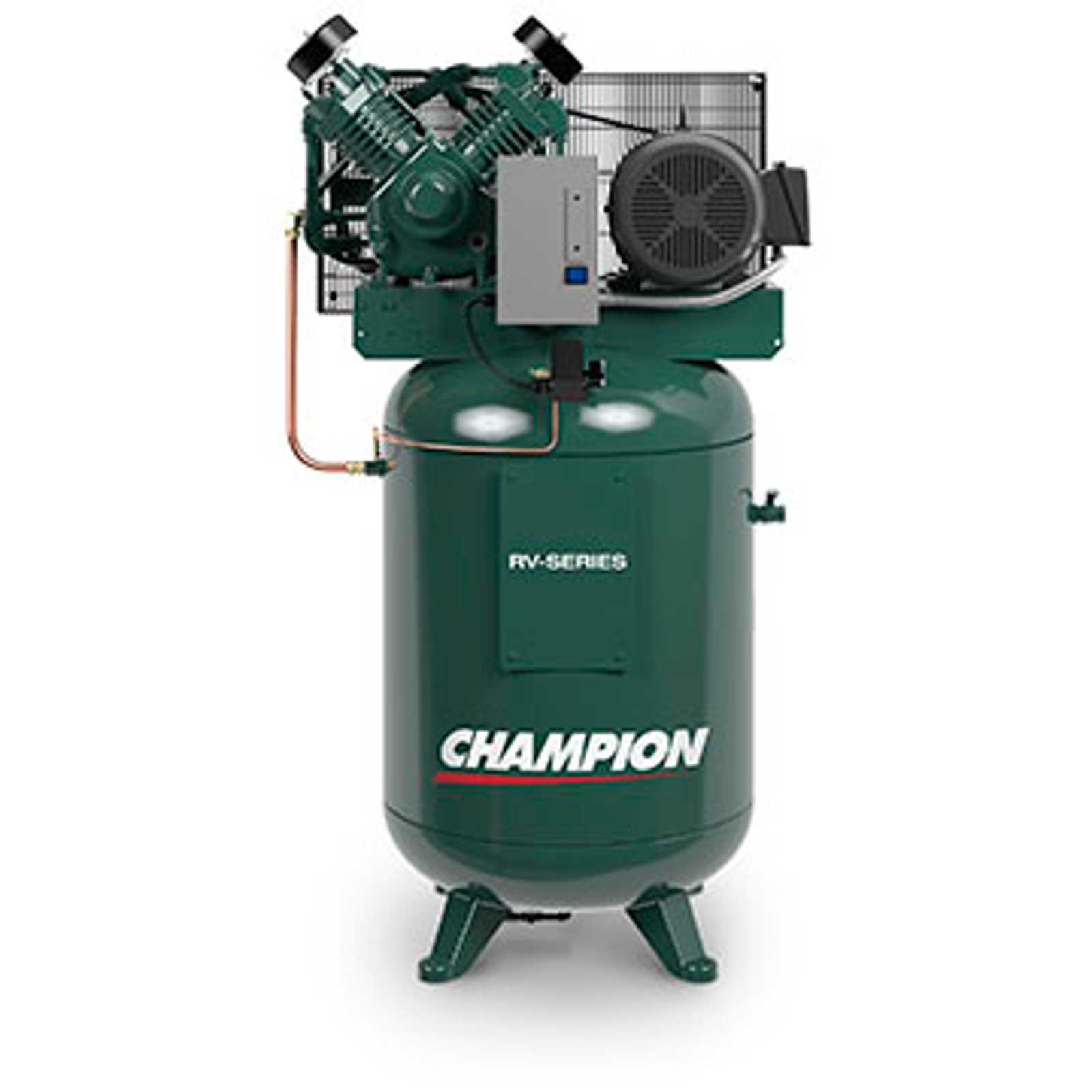

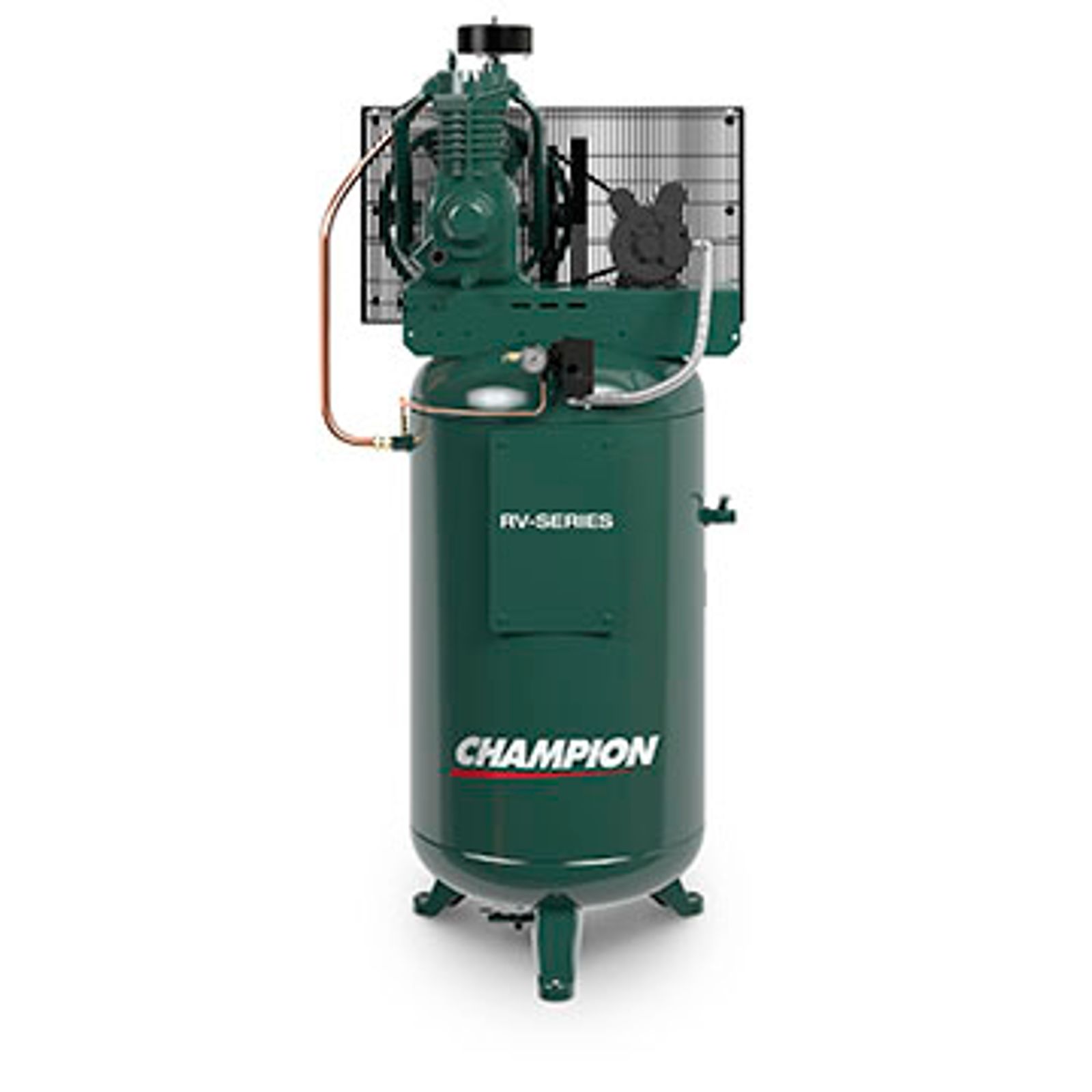

Vertical Configuration with R-10/R-15 Pump

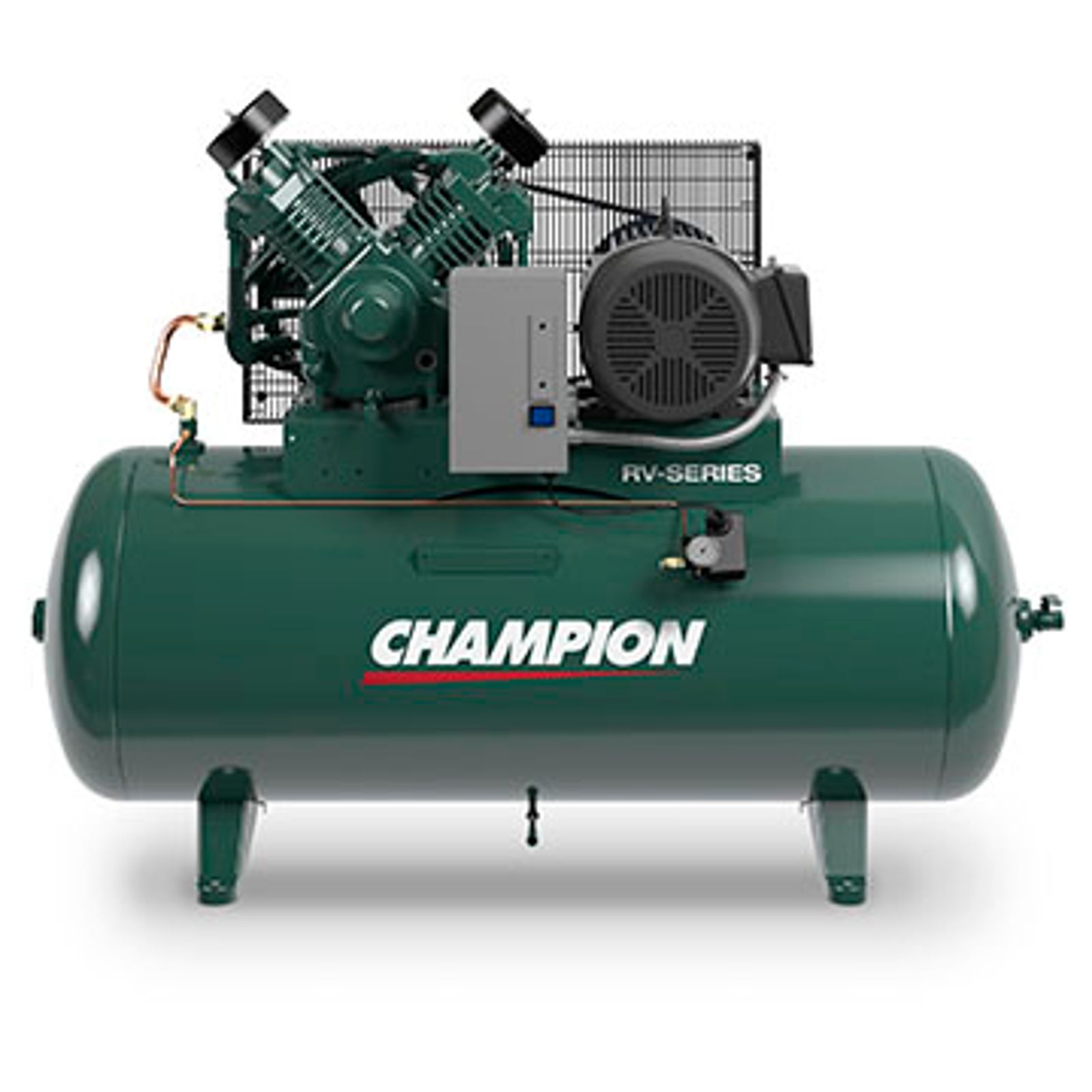

Horizontal Configuration Option with R-30 Pump
Two-Stage, Splash Lubricated Compressor Pump
Automatic Start/Stop Operation
Factory filled with ChampLub AC lubricant

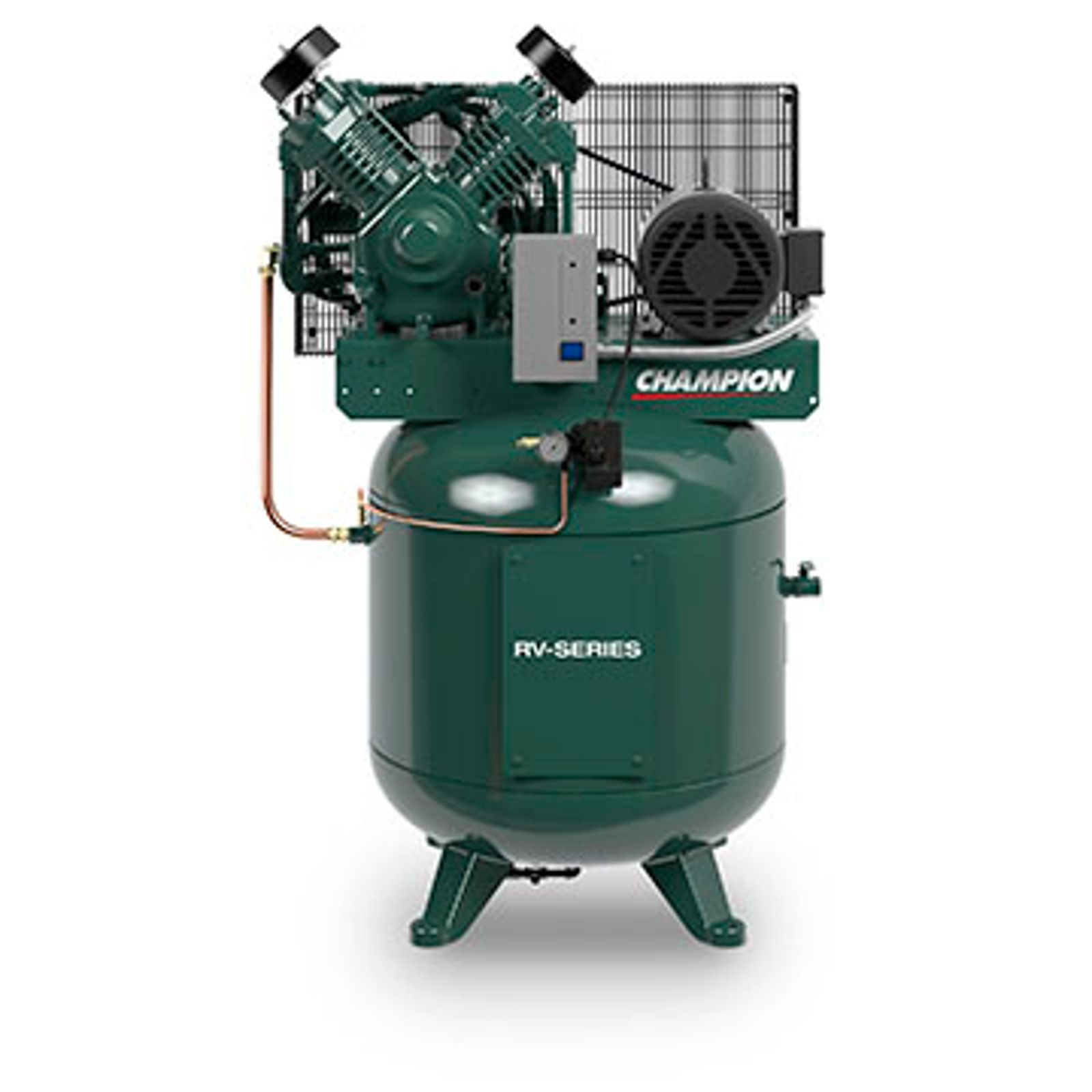

13 HP gas engine compressor/generator model available

Request a Quote Request Service, Parts or Support

Features

Standard Features

Automatic Start/Stop Operation
Magnetic Starter*
ASME Coded Receiver
NEMA Rated Electric Motors
0-300 PSIG Air Pressure Gauge on Tank
Preset Pressure Switch
Available Voltages
- Single Phase-208, 230 on 2 HP through 7.5 HP with R-10 and R-15 Pump
- Three Phase-208, 230, 460, 575 on 7.5HP through 15 HP with R-30 Pump

Available Options

Pneumatic Tank Drains
Vibration Isolators
Low Oil Level Monitor
Air-Cooled After-coolers

*Options not available on 5 HP 3600 RPM motor

Benefits

Special alloy steel reed valves with self-cleaning valve design maintain peak performance throughout the life of the compressor
Cast iron cylinders and heads offer industrial-rated, rugged dependability
Industrial grade intake filter and silencer
Oil level site glass for easy monitoring
Deep finned intercooler for cool operation
ASME air receiver
NEMA-Rated electric motors
