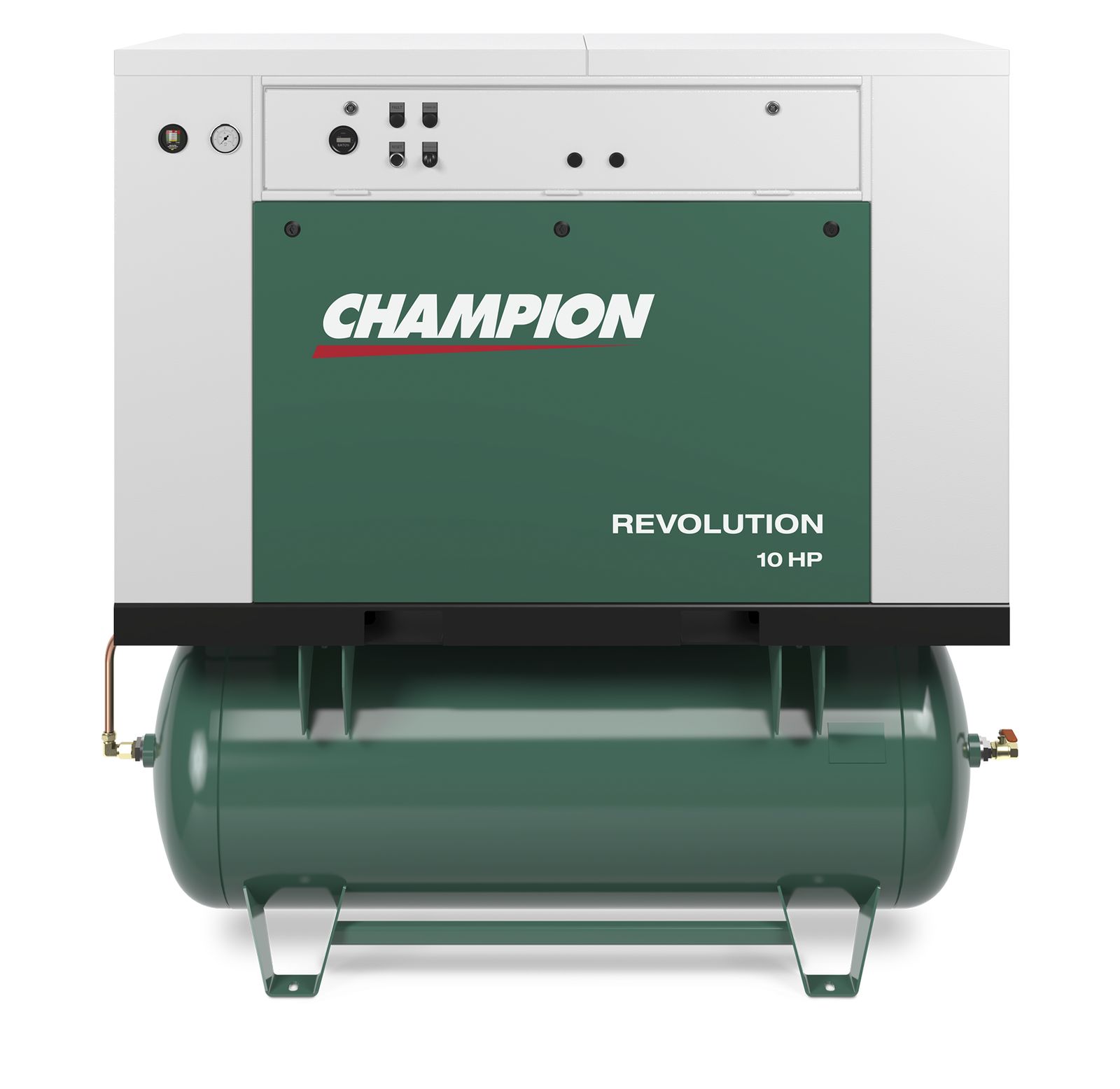

Champion has always prided itself on bringing the most innovative technology to the marketplace. There is no better example of this than the state of the art, re-designed Quiet Enclosed Reciprocating compressor package. Using our legendary R-Series compressor pump, this compressor combines the reliability and high performance of our flagship compressor pump into an enclosure that provides optimum cooling and low sound levels.
The Revolution is ideal for applications that require the technology of a reciprocating compressor but also lower sound levels. This compressor has dBA levels as low, or even lower, than a typical Rotary Screw compressor and approach temperatures less than 20 degrees.
Quiet Enclosed design utilizing 2” foam on external panels
Legendary R-Series compressor pump
ASME inter-stage pressure relief valve for protection
ODP NEMA 1760 RPM electric motor
10 Micron industrial grade intake filter
ASME coded receiver
0-300 PSIG air pressure gauge on tank
Available voltages
Sophisticated control panel design with power on light, fault light, Hour Meter and ON-OFF switch as standard
Remarkably low sound levels, as low as 62 dBA!
Bottom intake and discharge for better sound attenuation
Ability to run the package with doors on, making it a fully enclosed quiet package, or with the doors off allowing for even more airflow
B11.19 compliant enclosure
Save on space and installation costs by selecting the mounted refrigerated dryer option to the package
2” foam on external panels
Efficient over-sized bar and plate after-cooler
Large cooling fan provides optimum airflow and cooler temperatures
Electronic tank drain
High temp switch
Food Grade Oil
REVOLUTION 5-15 HP SIMPLEX UNITS
MOTOR | TANK | PACKAGE | DIMENSIONS | DIMENSIONS |
5 | - | BQR5 | 61 x 32 x 45 | - |
5 | 80 | HQR5-8 | 70 x 32 x 64 | 71 x 32 x 64 |
7.5 | - | BQR7F | 61 x 32 x 45 | - |
7.5 | 80 | HQR7F | 70 x 32 x 64 | 71 x 32 x 64 |
REVOLUTION 10-15 HP SIMPLEX UNITS
MOTOR | TANK | PACKAGE | DIMENSIONS | DIMENSIONS |
10 | - | BQR10 | 68 x 33 x 50 | - |
10 | 120 | HQR10-12 | 76 x 33 x 74 | 93 x 33 x 71 |
15 | - | BQR15F | 68 x 33 x 50 | - |
15 | 120 | HQR15F-12 | 76 x 33 x 74 | 93 x 33 x 71 |
R-SERIES RECIPROCATING COMPRESSOR
MODEL | # OF CYLINDERS | BORE DIA. | STROKE | OIL |
R-15 | 2 | 4.63 x 2.5 | 3 | 2 |
R-30 | 4 | 4.63 x 2.5 | 3 | 4 |
