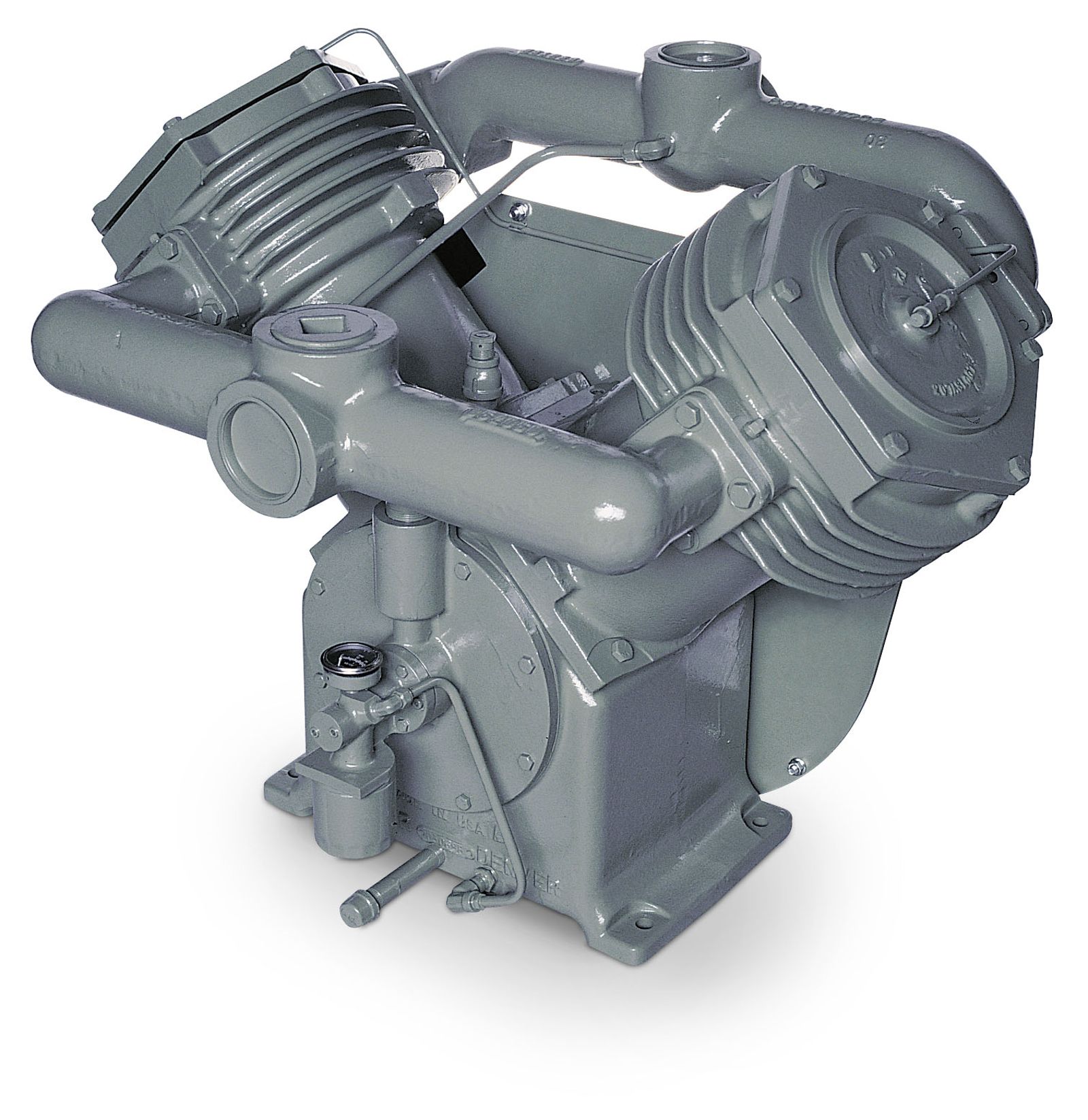

A Series Oil Lubricated Reciprocating Compressor

Single & Two Stage, Pressure Lubricated (5-40 HP) Reciprocating Air Compressor

The A-series reputation has been built on reliability, quality, and accessibility to all components. Products include air-cooled bare compressors, boosters and vacuum pumps. A-Series compressors include counterbalanced crankshaft to ensure smooth operation, heavy duty cast iron construction, and deep-finned cylinders and heads, which quickly dissipate the heat of compression. Superior lubrication is accomplished through a gear driven positive displacement oil pump powered by the crankshaft. A-series bares and boosters are ideal for petroleum refineries, oil rigs, ore mines, plant air and vacuum, engine starting and well head servicing.

Specifications and Features

  • 15-40 HP (compressor or booster)
  • Up to 350 PSIG operating pressure
  • Single & Two Stage
  • 5-10 HP (vacuum)
  • Down to 28" Hg vacuum
  • Pressure Lubricated
  • Heavy-duty cast iron construction
  • Factory filled with AEON lubricant
  • Compressor or Vacuum Pump with spin-on oil filter
  • Drive sheave with turbo fins
  • Suction unloading valves (SUV) or plain valves as indicated
  • Oil level dipstick
  • Factory fill of Champ Lub AC
  • Two-Stage include inter-cooler with pressure gauge and relief valve
  • *ANP Natural Gas Compressors have no exposed brass or copper components
  • *ANP Natural Gas Compressors include Viton o-rings and threaded crankcase vent connection
  • ASME pressure relief valve protects the inter-cooler and first stage from over pressure.
  • Suction unloading valves (where applicable) provide load-less starting and stopping as well as quick response to capacity demands.
  • Removable hand-hole plate allows easy access to the internal running gear.
  • Tri-Metal insert bearings are two-piece for quick and easy replacement.
  • Counterbalanced crankshaft assures smooth operation.
  • Replaceable piston pin bearings are very economical when replacement becomes necessary.
  • Crankshaft ends are supported by large tapered roller bearings for smooth operation and long life.
  • Oil pressure gauge assures the operator of lubrication system integrity.
  • The cylinders and crankcase are built of industrial strength cast iron materials.
  • Generously sized inter-cooler provides maximum cooling for the most efficient operation and low power consumption. (AVLAVCAA only)
  • Deep-finned cylinders and heads quickly dissipate the heat of compression.

Features

  • Compressor or Vacuum Pump with spin-on oil filter
  • Drive sheave with turbo fins
  • Suction unloading valves (SUV) or plain valves as indicated
  • Oil level dipstick
  • Factory fill of Champ Lub AC
  • Two-Stage include inter-cooler with pressure gauge and relief valve
  • *ANP Natural Gas Compressors have no exposed brass or copper components
  • *ANP Natural Gas Compressors include Viton o-rings and threaded crankcase vent connection

Benefits

  • ASME pressure relief valve protects the inter-cooler and first stage from over pressure.
  • Suction unloading valves (where applicable) provide load-less starting and stopping as well as quick response to capacity demands.
  • Removable hand-hole plate allows easy access to the internal running gear.
  • Tri-Metal insert bearings are two-piece for quick and easy replacement.
  • Counterbalanced crankshaft assures smooth operation.
  • Replaceable piston pin bearings are very economical when replacement becomes necessary.
  • Crankshaft ends are supported by large tapered roller bearings for smooth operation and long life.
  • Oil pressure gauge assures the operator of lubrication system integrity.
  • The cylinders and crankcase are built of industrial strength cast iron materials.
  • Generously sized inter-cooler provides maximum cooling for the most efficient operation and low power consumption. (AVLAVCAA only)
  • Deep-finned cylinders and heads quickly dissipate the heat of compression.
