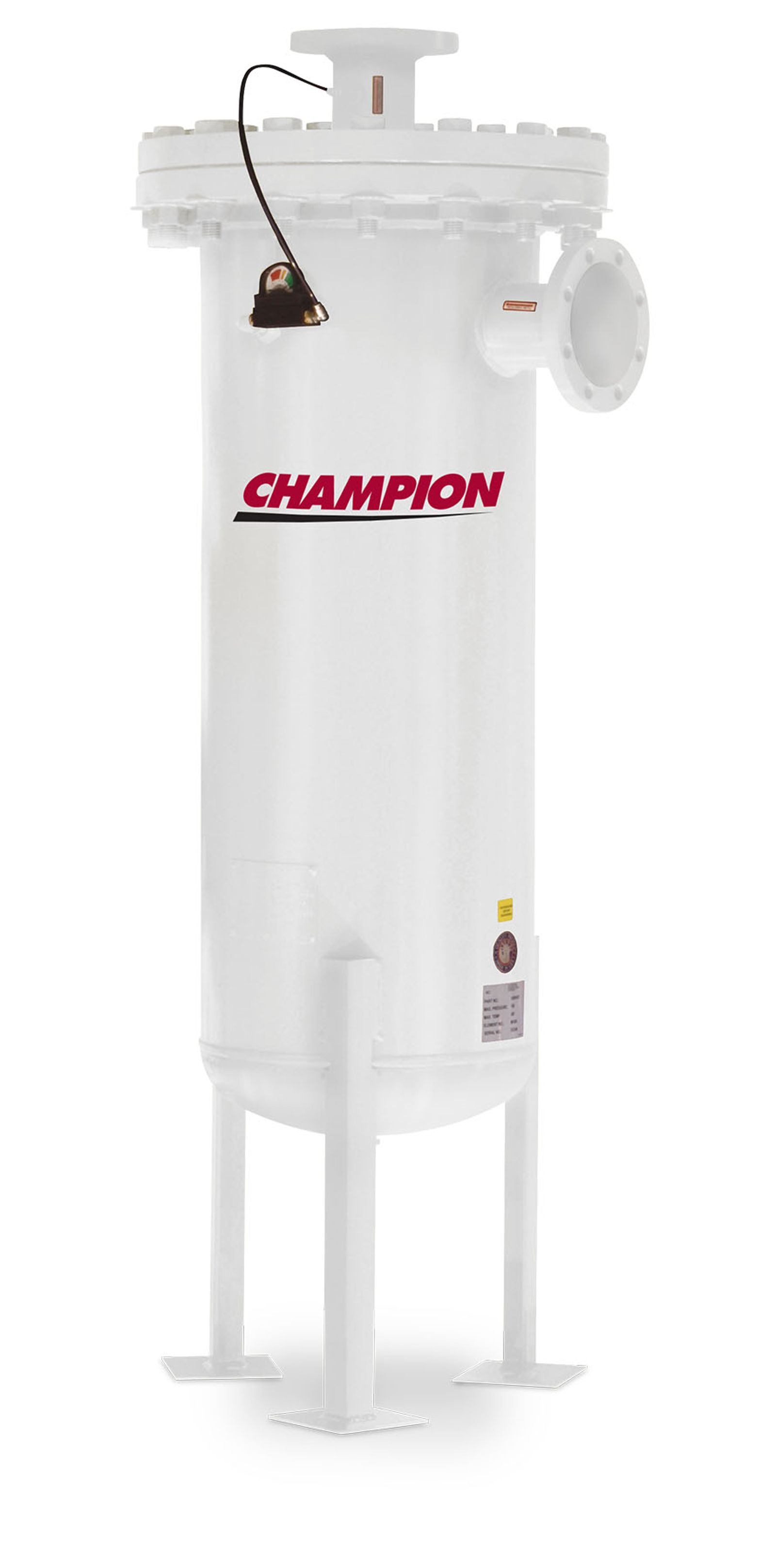

CFE Series - Mist Eliminators

• 125 - 3000 SCFM
• Maximum working pressure: 150 PSIG
• Maximum operating temperature: 150°F
• Low pressure drop, saving energy
• Long life mist eliminator element - standard
• Automatic condensate drain - optional 

Low operating costs

• Low pressure drop: 0.5 to 1 psi (0.04 to 0.07 kgf/cm2) Typical coalescing filters operate at 3 to 6 psi (0.21 to 0.42 kgf/cm2) requiring the air compressor to operate at higher operating pressures, increasing power requirements by 2.5% or more
• Long element life: 8 to 15 years, with a large in-depth bed, element life is much longer than conventional oil removal filters
• Virtually maintenance free

Extra protection

• Captures and retains large slugs of oil and water, should drain trap fail.
• Protects downstream equipment from contamination should oil separator on rotary screw compressor fail

Removes submicronic particles

• 100% of particles 3 micron and larger
• 99.98% of particles 0.1 micron and larger
• 0.5 ppm w/w maximum liquid content after filtration
• 1000 ppm maximum inlet liquid loading
