RV-Series Two Stage Lubricated Reciprocating

Two Stage, Splash Lubricated (2-15 HP) Reciprocating Air Compressor

The Champion RV-Series compressor is engineered to deliver industrial-rated dependability at an affordable price. The RV line offers maximum installation versatility. Each compressor features durable cast-iron construction, industrial grade filter and silencer and alloy steel reed valves.

Specifications and Features

  • 2-15 HP
  • 125-175 PSIG
  • 4.5-48.1 CFM at 175 PSIG rating
  • Tank Mounted

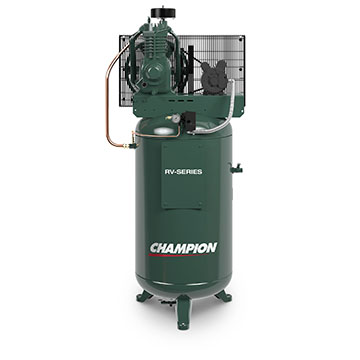

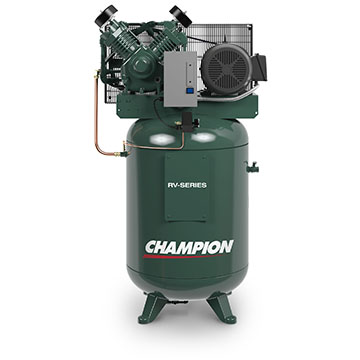

  • Vertical Configuration with R-10/R-15 Pump

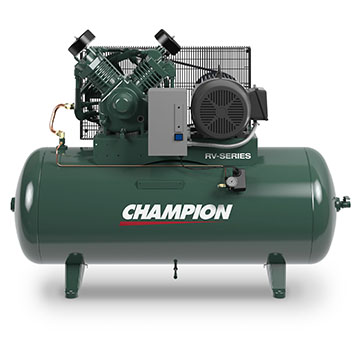

  • Horizontal Configuration Option with R-30 Pump
  • Two-Stage, Splash Lubricated Compressor Pump
  • Automatic Start/Stop Operation
  • Factory filled with ChampLub AC lubricant
  • 13 HP gas engine compressor/generator model available
Standard Features
  • Automatic Start/Stop Operation
  • Magnetic Starter*
  • ASME Coded Receiver
  • NEMA Rated Electric Motors
  • 0-300 PSIG Air Pressure Gauge on Tank
  • Preset Pressure Switch
  • Available Voltages
    • Single Phase-208, 230 on 2 HP through 7.5 HP with R-10 and R-15 Pump
    • Three Phase-208, 230, 460, 575 on 7.5HP through 15 HP with R-30 Pump
Available Options
  • Pneumatic Tank Drains
  • Vibration Isolators
  • Low Oil Level Monitor
  • Air-Cooled After-coolers

*Options not available on 5 HP 3600 RPM motor

  • Special alloy steel reed valves with self-cleaning valve design maintain peak performance throughout the life of the compressor
  • Cast iron cylinders and heads offer industrial-rated, rugged dependability
  • Industrial grade intake filter and silencer
  • Oil level site glass for easy monitoring
  • Deep finned intercooler for cool operation
  • ASME air receiver
  • NEMA-Rated electric motors

Features

Standard Features
  • Automatic Start/Stop Operation
  • Magnetic Starter*
  • ASME Coded Receiver
  • NEMA Rated Electric Motors
  • 0-300 PSIG Air Pressure Gauge on Tank
  • Preset Pressure Switch
  • Available Voltages
    • Single Phase-208, 230 on 2 HP through 7.5 HP with R-10 and R-15 Pump
    • Three Phase-208, 230, 460, 575 on 7.5HP through 15 HP with R-30 Pump
Available Options
  • Pneumatic Tank Drains
  • Vibration Isolators
  • Low Oil Level Monitor
  • Air-Cooled After-coolers

*Options not available on 5 HP 3600 RPM motor

Benefits

  • Special alloy steel reed valves with self-cleaning valve design maintain peak performance throughout the life of the compressor
  • Cast iron cylinders and heads offer industrial-rated, rugged dependability
  • Industrial grade intake filter and silencer
  • Oil level site glass for easy monitoring
  • Deep finned intercooler for cool operation
  • ASME air receiver
  • NEMA-Rated electric motors

Performance
