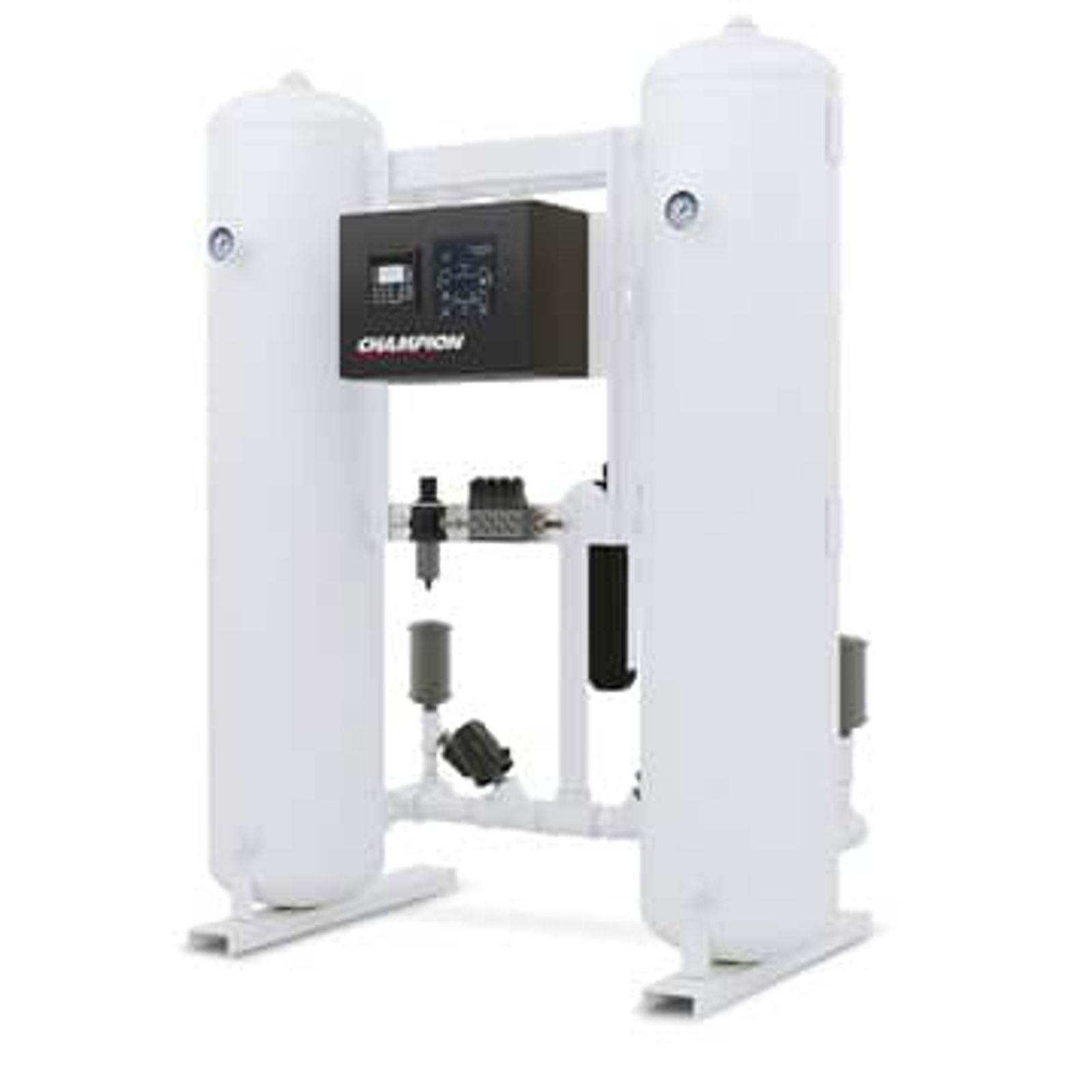

XCHL Series Heatless Desiccant Air Dryer

Heatless Desiccant Air Dryers

Reduce your total cost of ownership with the new XCHL Series of heatless desiccant dryers that provides clean, dry compressed air through a reliable design and superior serviceability.

Features

  • 90 - 3300 SCFM
  • Maximum Working Pressure: 150 PSIG standard; higher pressures available
  • Customizable Dewpoints to -100°F
  • NEMA 4-Standard
  • Digital Controller
  • Low Mounted Filtration for Ease of Service
  • High Strength Activated Alumina
  • Tower Pressure Gauges
  • Packaged Filtration – Standard
  • Benefits

  • Low-profile design permits placement of dryer in areas with low overhead clearances, while minimizing shipping costs
  • Rear-mounted inlet and outlet manifolds provide convenient access to critical valves and components for easier and safer service and maintenance as compared to competitive designs
  • Standard NEMA 4 enclosure suitable for indoor and outdoor applications, protects against dirt, dust, moisture and ice
  • New long life switching and purge valves with extended service intervals
  • Enhanced controller provides precise pneumatic valve sequencing; backlit LCD display is easy to read under all lighting conditions
  • Maintenance reminders alert users to critical preventive maintenance intervals to ensure consistent, uninterrupted service
  • Easily accessible control air solenoid valves with push to test feature
  • External communications via Modbus accessible through the controller's RS-485 port
  • Status panel provides quick visual indication of dryer operation, tower status and alarm annunciation
