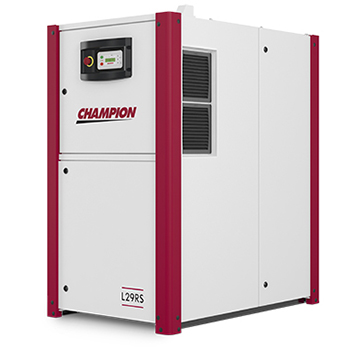

LRS Oil Lubricated Rotary Screw Compressor
Oil Lubricated single stage, variable-speed rotary screw technology 7-29 kW (10-40HP)
Champion's LRS Series variable speed compressors can efficiently and reliably handle the varying air demand. The right variable speed compressor in the right application delivers significant energy savings and a stable air supply at constant pressure.
Share

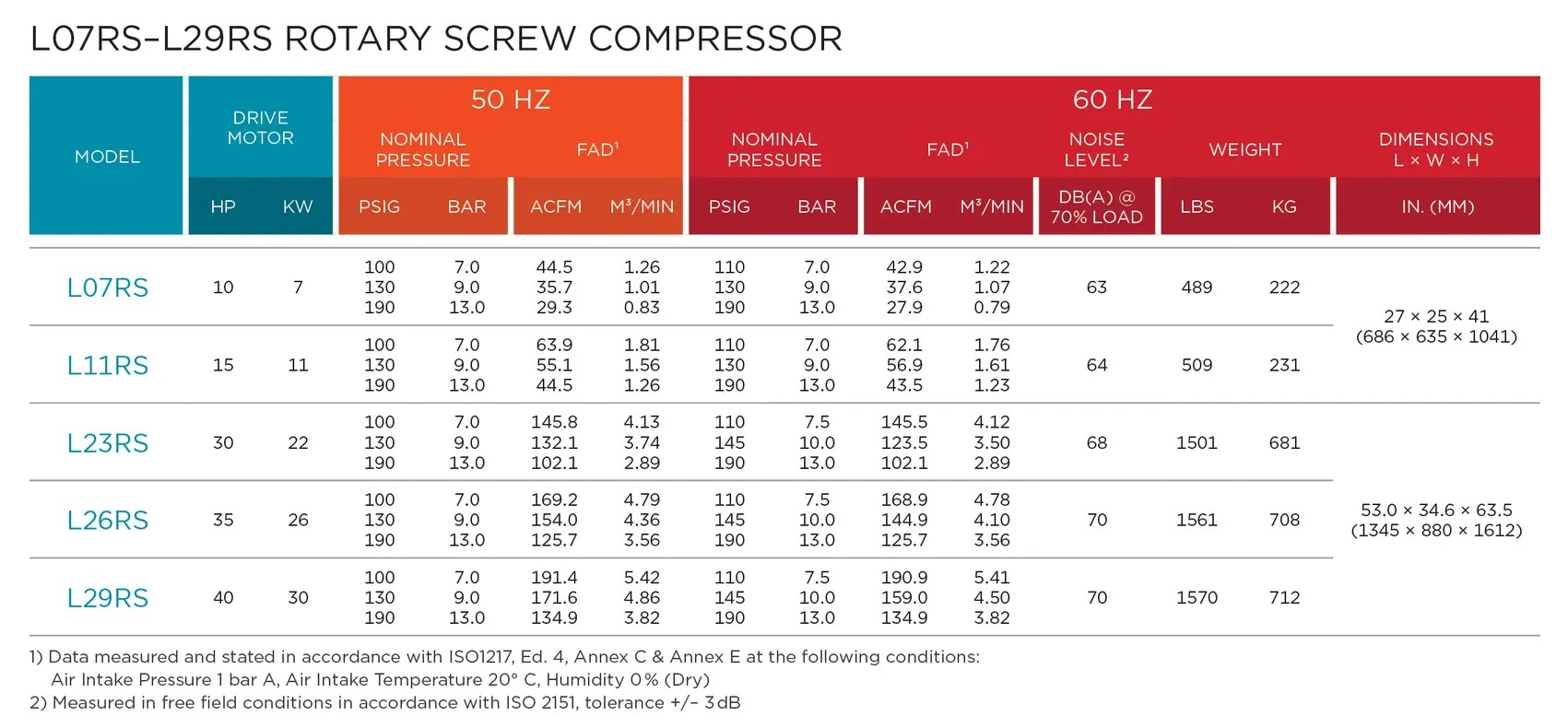

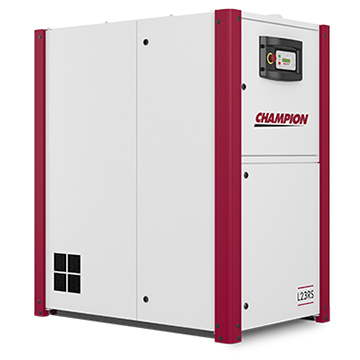

The LRS Series product range goes from 7-29 kW. L07RS-L22RS (7-22kW) are belt driven units, while the L23RS-L29RS (22-29 kW) units are direct drive. All LRS Series compressors feature microprocessor controllers, robust inverter drives, 3600 TEFC motors and quiet enclosures.
- Using a variable speed compressor can easily save 25% energy by using just the right amount of energy required to do the job and no more.
- High-quality, sound-insulating enclosure panels and a low-noise, thermostatically-controlled, motor-driven fan.
- State-of-the-art controllers feature advanced software and an easy to use interface.
- Your sales, service and technical support needs will be handled quickly and easily by our extensive network of Champion factory-trained, authorized local distributors
Features
The LRS Series product range goes from 7-29 kW. L07RS-L22RS (7-22kW) are belt driven units, while the L23RS-L29RS (22-29 kW) units are direct drive. All LRS Series compressors feature microprocessor controllers, robust inverter drives, 3600 TEFC motors and quiet enclosures.
Benefits
- Using a variable speed compressor can easily save 25% energy by using just the right amount of energy required to do the job and no more.
- High-quality, sound-insulating enclosure panels and a low-noise, thermostatically-controlled, motor-driven fan.
- State-of-the-art controllers feature advanced software and an easy to use interface.
- Your sales, service and technical support needs will be handled quickly and easily by our extensive network of Champion factory-trained, authorized local distributors
